Manufacturer : Iflight / Référence : BF15682
Blitz Mini F745 E55 Stack By Iflight
En stock
€137.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

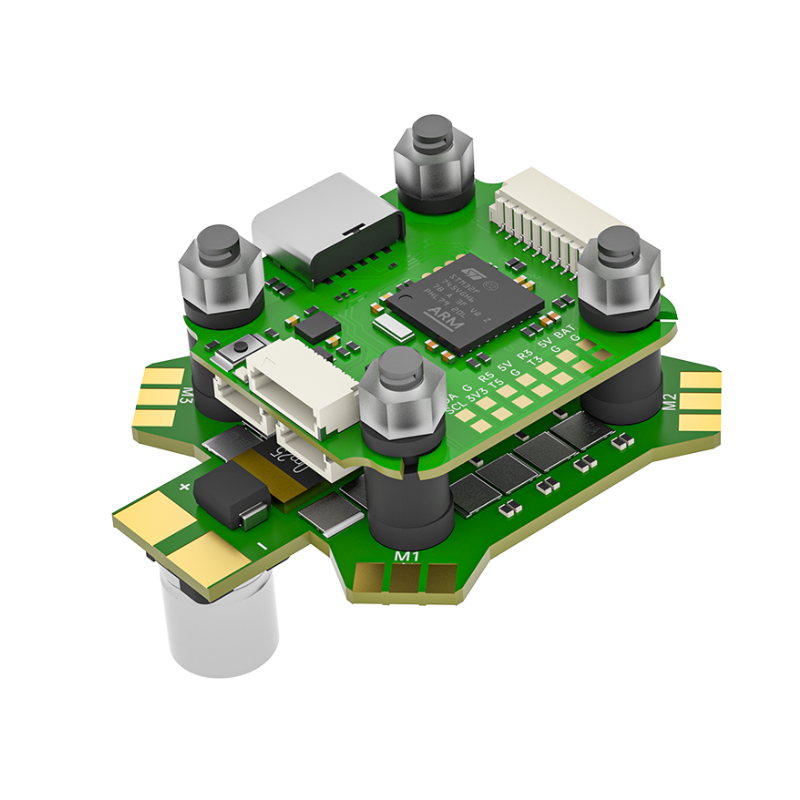

Iflight BLITZ series stack with a Blitz mini F745 flight controller and a 4in1 mini E55 ESC.
Supporting Betaflight, INAV and Ardupilot firmware, this stack is equipped with a DJI HD plug&play connector requiring no soldering as well as quality components that significantly reduce noise!
The stack consists of, among other things, an ICM42688 gyro, a DPS310 barometer and a 16MB blackbox.
FC
- MCU: STM32F745
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 16MB (Blackbox flash)
- UARTS: 6
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFLIGHT_BLITZ_F7_AIO
- Mount pattern: 20*20mm/φ4
- Dimensions: 30.5*27 mm
- Weight: 4.8g
- BEC: 5V 2.5A / 9V 2A
- UART 1 for VTX HD / Analog
- UART 2 for a Receiver
- UART 3/4/5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemet
ESC
- Mounting Holes: 20*20mm/Φ4mm
- Weight: 11.3g
- Supports 2-6S Lipo input
- MCU： G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: IFLIGHT_BLITZ_G071_01 32.9/ IFLIGHT BILTZ G2 32.9
Included
- 1x BLITZ Mini F745 Flight Controller
- 1x BLITZ Mini E55 4in1 2-6S ESC
