Manufacturer : Aikon / Référence : AIKON-F7-MINI-HD-V3
-20%

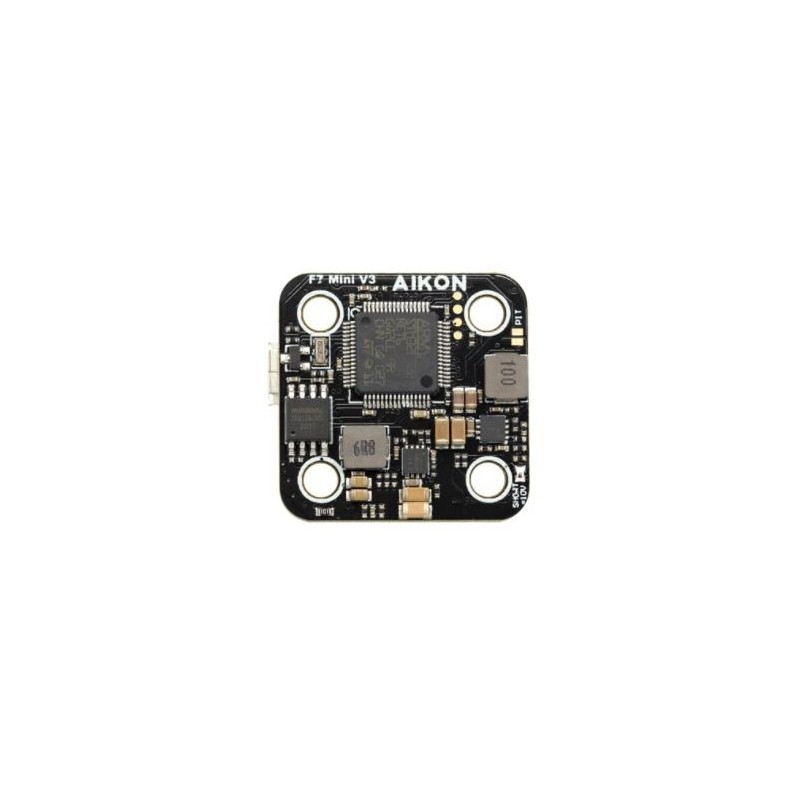

Aikon F7 Mini HD V3 Flight Controller
En stock
€69.95
€55.96
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Aikon flight controller is a new generation flight controller designed specifically to work with our Aikon 4-in-1 ESCs. We've packed all the greatest features into one seamless flight experience.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
What makes the Aikon F7 amazing?
- 216mhz F7 processor
- 5 Software invertable hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch
- LED outputs
- Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon 4-in-1 ESCs
- On-board voltage regulator up to 6S
- DJI Quick Connect Port
Specifications
- Input: 12-50V (3-6 Cell Lipo)
- Bec: 5V@2A
- Firmware: AIKON F7
- STM32F77RET6 MCU
- ICM42688P Gyro
- DJI Air Unit Port: YES
- Built in OSD (AT7456)
- Built in 16mb Flash for DATA logging
- Wide range of voltage input (50V)
- 5 UARTS
- VTX Switch
- Cam controller
- l2c LED-STRIP, BUZZER, ESC5, ESC6, PPM, RSSI
- Size(mm): 20x20
- Weight(g): 5.4
Customer reviews
Déplorable ce matériel, pas de notice, pas un petit schéma de câblage, même pas de sérigraphie ou repère des connecteurs, 4 récepteurs différents pour arriver à la faire fonctionner, port rx 1 qui ne fonctionne apparement pas
Super FC veramente ottima.
