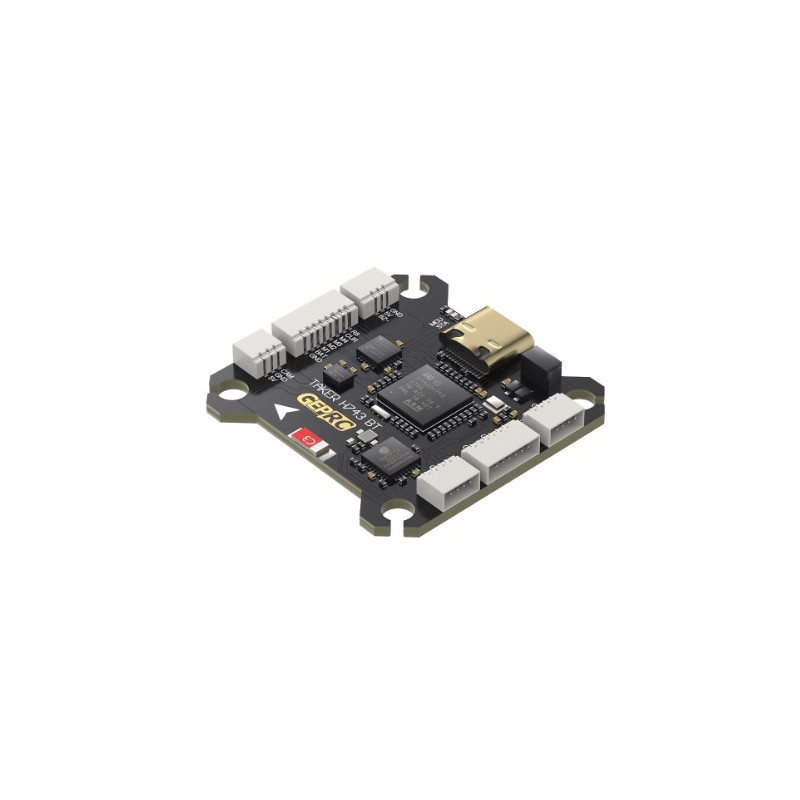

Taker H743 BT Flight Controller By GEPRC

The GEPRC TAKER H743 flight controller is designed to deliver outstanding performance for the most demanding FPV drone pilots. Powered by a high-performance STM32H743 MCU, it ensures ultra-fast and reliable flight calculations. For precise stabilization, it features a dual gyroscope setup with both the MPU6000 and ICM42688-P, offering superior vibration resistance and flight accuracy.

This flight controller offers direct connectivity to the DJI Air Unit, streamlining installation and reducing cable clutter. With an embedded 512 MB Blackbox, you can log flight data without needing an external SD card, making post-flight analysis easier than ever.

Built-in Bluetooth support allows wireless configuration via compatible mobile apps, while the integrated barometer enables advanced features like altitude hold. An on-screen display is handled by the BetaFlight OSD using the AT7456E chip, providing clear, real-time flight data during your sessions.

Power distribution is handled by a dual BEC system, delivering 5V at 3A and 12V at 2.5A, ensuring stable power to all connected components. An integrated LC filter further improves power quality and reduces electrical noise for smoother performance.

With 7 available UART ports, including a dedicated UART3 for Bluetooth, this controller offers exceptional flexibility for connecting peripherals. A modern USB Type-C interface ensures fast, durable connections for configuration and updates.

Compact and lightweight, the GEPRC_TAKER_H743 measures 38.5 × 38.5 mm with a standard 30.5 × 30.5 mm mounting pattern and weighs only 8.4 g, making it ideal for high-performance builds. Compatible with 3–6S LiPo batteries, it supports a wide range of power setups for both freestyle and racing drones.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
