Manufacturer : Iflight / Référence : BF15684

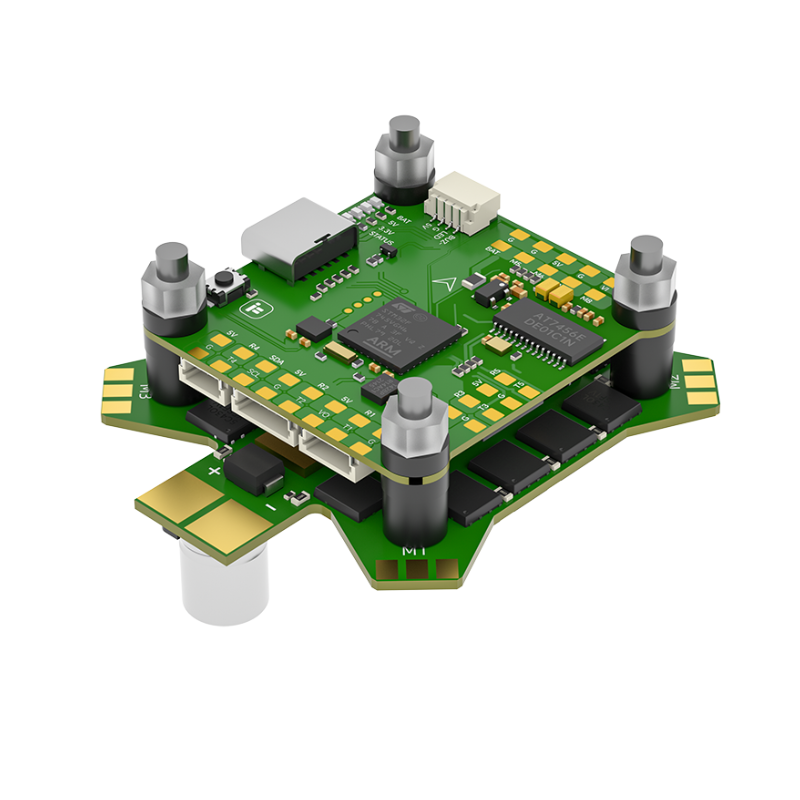

Blitz F745 E55 30x30 Stack By Iflight

Hors stock
€146.90
Out-of-Stock Notify me when the product is available again

15 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Iflight BLITZ series stack with a Blitz F745 flight controller and a 4in1  E55 ESC.

Supporting Betaflight, INAV and Ardupilot firmware, this stack is equipped with a DJI HD plug&play connector requiring no soldering as well as quality components that significantly reduce noise!

The stack consists of, among other things, an ICM42688 gyro, a DPS310 barometer and a 32MB blackbox.

FC

  • MCU: STM32F745
  • Gyro: ICM42688
  • Barometer: DPS310
  • OSD Chip: AT7456E
  • Flash: 32MB (Blackbox flash)
  • UARTS: 6
  • Smartaudio / IRC Tramp VTX protocol supported
  • LED controller: Yes
  • Beeper pad: Yes
  • Firmware target: IFLIGHT_BLITZ_F7_AIO
  • Mount pattern: 30.5*30.5mm
  • Dimensions: 36.5*35 mm
  • Weight: 7.8g
  • BEC: 5V 2.5A / 9V 2A
  • UART 1 for VTX HD / Analog
  • UART 2 for a Receiver
  • UART 3/4/5 for GPS or other sensors that require a serial port
  • UART 6 for ESC Telemet

ESC

  • Mounting Holes: 30.5*30.5mm/Φ4mm
  • Weight: 15.3g
  • Supports 2-6S Lipo input
  • MCU： G071
  • Constant: 55 Amps
  • Burst: 60 Amps
  • Current sensor: Yes
  • BEC: No
  • Current rate: 200
  • Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
  • Target : IFLIGHT_BILTZ_G3 32.9

Included

  • 1x BLITZ F745 Flight Controller
  • 1x BLITZ E55 4in1 2-6S ESC
  • 1x Set of dampers
  • 1x Set of wires for FC
