X-Tower2 F7 60A 30x30 Stack By Flycolor
Related accessories
Technical characteristics

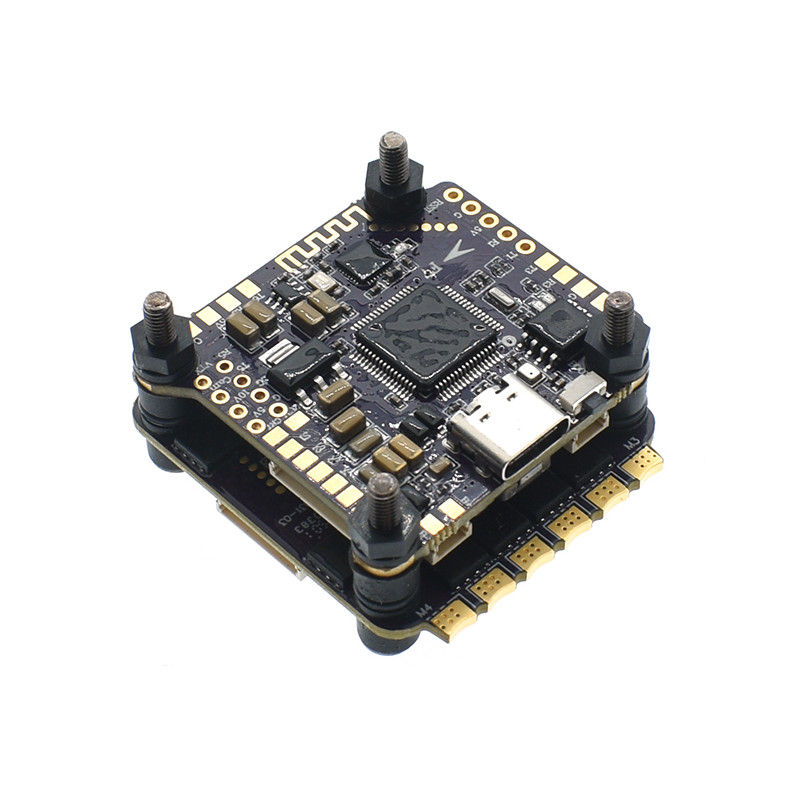

This Flycolor stack consists of an F722 flight controller and a 4in1 60A ESC.
With 30.5x30.5mm mounting holes, it supports 3-6S LiPo voltage, Bluetooth, Betaflight and is capable of handling 60A continuous current.
In addition, the X-Tower2 has a 4-way LED port, LEDs configurable on Bataflight.
Specifications
- Item Model: X-Tower 2 60A
- Support Voltage: 3-6S Lipo
- Con. Current: 60A
- Gyro : MPU6500
- Burst Current: 70A
- Structure: Tower
- F.C Volt: 3.3V/5V/10V
- MCU of F7: STM32F722
- F7 Firmware: STM32F7X2 (Config.: FLYCOLORF7)
- ESC Firmware: Flycolor_X_Cross_BL_32
- Bluetooth: FC_Bluetooth.
- USB: Type C
- Installation Hole: 30.5×30.5mm, M3
- Size: 41.7×44.8×16.7mm
- Weight: 26g
Bullet points
- MOSFET with high performance and low Rds, not afraid of large current, more suitable for rapid flight.
- Two layers tower structure between 4in1 ESC and FC, using cable for quick connection, using silicone vibration absorber for supporting, reducing the effect of vibration on Flight Control.
- Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
- The code supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42 and Multishot.
- All Dshot and Proshot signals are supported.
- Supports SBUS,SPEKTRUM1024/2048 etc. remote control / receiving mode.
- FC integrated 3.3V,5V, 12V for receiver, VTX, camera, buzzer, LED and other peripheral devices.
- 4-way led port, independent 5V BEC power supply, making the power supply more safe and reliable.
- Supports Betaflight Configurator to adjust the LED color.
Included
- 1x X-Cross BL32 4in1 60A ESC
- 1x Omnibus F7 FC
- 1x Set of connection wires
Customer reviews
ATTENTION la fc fonction de usb-a vers usb-c et non usb-c vers usb-c sinon parfaite.
Excellente stack, en plus d'être très bien tropicalisé
Finalement, j'aurais dû prendre la stack en 20x20. Attention, alimentez la FC avec un câble USB-C / USB-A, sinon, elle n'est pas reconnue. La notice parle de Zadig la galère quand on a un mac. Reboote avec le bon câble pour passer en DFU ! Dommage que cela ne soit pas notifié.
Enfin une vraie stack rapport qualité prix ! Que du bon, n'hésitez pas !
