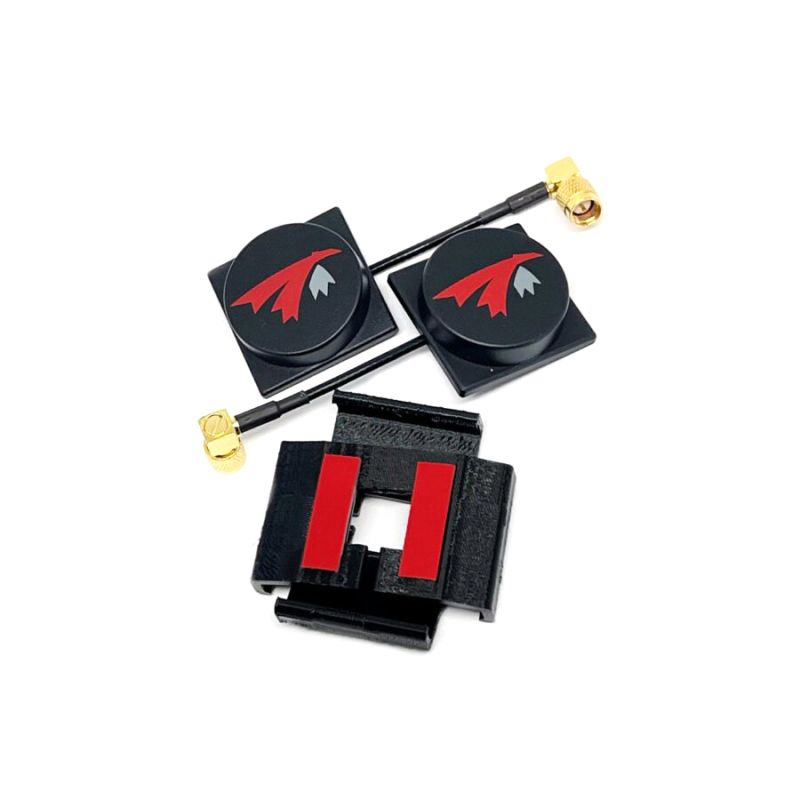

X-Air 5.8 MK.II For HDZero Goggles - RHCP (2pcs) By TrueRC
X-Air 5.8 MK.II For HDZero Goggles - RHCP (2pcs) By TrueRC
Manufacturer : TrueRC / Référence : TRUERC-X-AIR-HDZ-GOGGLES-MKII-RHCP

X-Air 5.8 MK.II For HDZero Goggles - RHCP (2pcs) By TrueRC

En stock
€59.90

6 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Technical characteristics

This pair of TrueRC antennas adapt perfectly to the HDZero goggles module thanks to their elegant and discreet appearance. Their excellent gain of 10dBic offers an incredible flight experience, all in a compact and discreet package.

Simply slide the antennas onto the module rails and screw on the knurled SMA connectors.

Add a pair of omni-directionals antennas (not included) for even more performance.

Bullet Points

  • Circularly Polarized
  • Mount direct on HDzero goggles with included slide-on mounts.
  • Compact low-profile design, easy to store and transport
  • High 10 dBic for long range and signal penetration
  • Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
  • Super wide 120 degree beam for each antenna combining to 135deg beam width
  • Custom knurled SMA connectors

Specifications



  • Bandwidth: 5.1GHz-6.7GHz
  • Gain: 9.5-10.5 dBic
  • Polarization: RHCP
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68deg.
  • Connector: SMA male
  • Dimension: 32 x 32 x 15mm
  • Include mounts for installation onto HDzero goggles.

*Coverage of individual antenna where reception is at least equivalent to an omni.

**Coverage of individual antenna where at least 70% of the max range is obtained.

Included

  • 2x TrueRC X-Air antenna (one for each side)
  • 2x Slide-on mount
