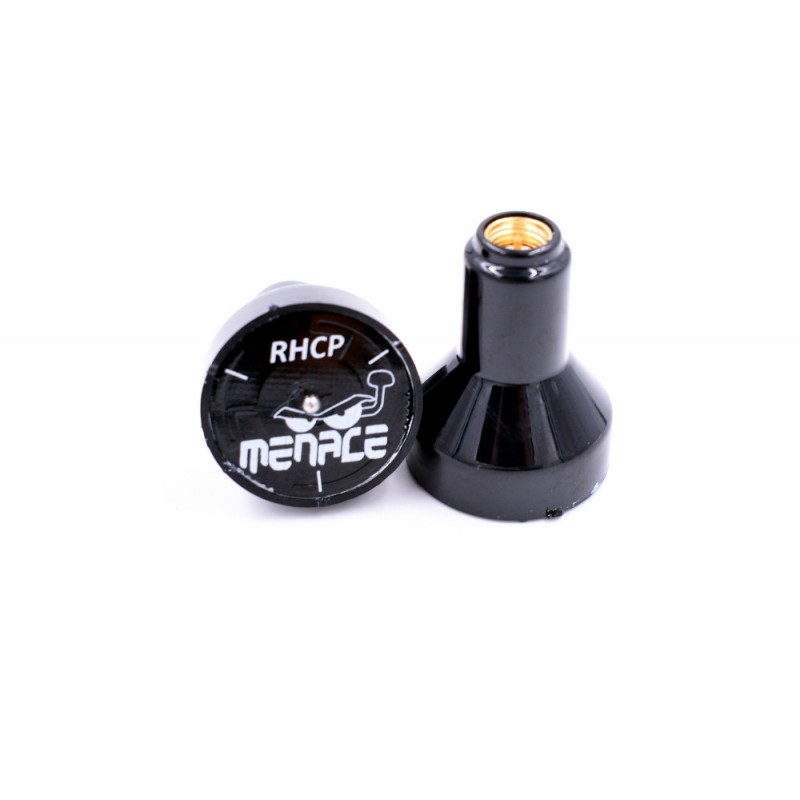

Menace Thrasher RHCP Antenna 5.8Ghz - Menace RC

MenaceRC

MENTHR-RHCP

The THRASHER antenna by MenaceRC, smallest robust pagoda design without compromise in performance for your racing or freestyle FPV drone.

Sold by unit.

Learn more

No reward points for this product.

Same Day Shipping

9,80 €

  • Degressive Shipping Costs

  • Same day shipping for orders placed before 3:30 pm (Monday to Friday)

More info

No compromise in performance, just like its bigger brothers, the THRASHER delivers a smooth radiation pattern with one of the most proven highest axial ratio designs all in a cableless resilient polycarbonate case for protection.

Taking the popular pagoda antenna designed by Maarten Beart, Menace has redesigned it for the demanding FPV drone pilots, incorporating adjustments to make it compact, fully cased to avoid coax cable damaged along with efficient productionisation meaning that the reduced assembly operations brings you the lowest cost antenna at the highest of performance.

Features

  • Small 5.8Ghz Aero design with excellent omni directional pattern.
  • Can be TPU mounted without signal degradation.
  • Polycarbonate Case
  • Unique PCB construction allows manufacturing within fine tolerances
  • Gain 1.22db with a radiation efficiency of over 92%
  • Clearer video reception with up to 20% greater signal received than other omni antenna topology with higher gain.
  • High Axial Ratio for reversed polarity rejection
  • Ideal for racing or freestyle FPV drones and wings.

Specifications

  • Centre frequency 5.8 GHz
  • Frequency Range: 5645 – 5945 MHz
  • Matching S11 < -20dB, VSWR <1.22
  • Gain: 1.22dB with efficiency: 92%
  • Axial Ratio <1.3
  • Beam width: 360 degrees
  • Right Hand Circular Polarised (RHCP)
  • SMA Connector
  • Dimensions: 32mm x 24.5mm (Mounting point is 12.5mm)
  • Weight: 7.3grams
Data sheet
Avis produits
  • Par C. Ewen
  • the 09/10/2019
Super rapport qualité prix. Bonne émission.
  • Par H. Stéphane
  • the 13/06/2019
Très bien
  • Par P. Fabien
  • the 08/06/2019
Bonne antenne pour le vol a proximité, se retrouve cachée pas le châssis et la Lipo dès qu'on retourne le quad c'est a prendre en compte...
  • Par J. Arnaud
  • the 03/06/2019
Agréablement surpris, au top
  • Par M. Alexis
  • the 23/05/2019
Niquel
  • Par G. Jannick
  • the 21/05/2019
Reste à tester
  • Par P. Fabien
  • the 21/03/2019
Pas testée encore mais je ne me fais pas de soucis
