Manufacturer : TrueRC / Référence : CORE-RPSMA-125MM-RHCP
-15%

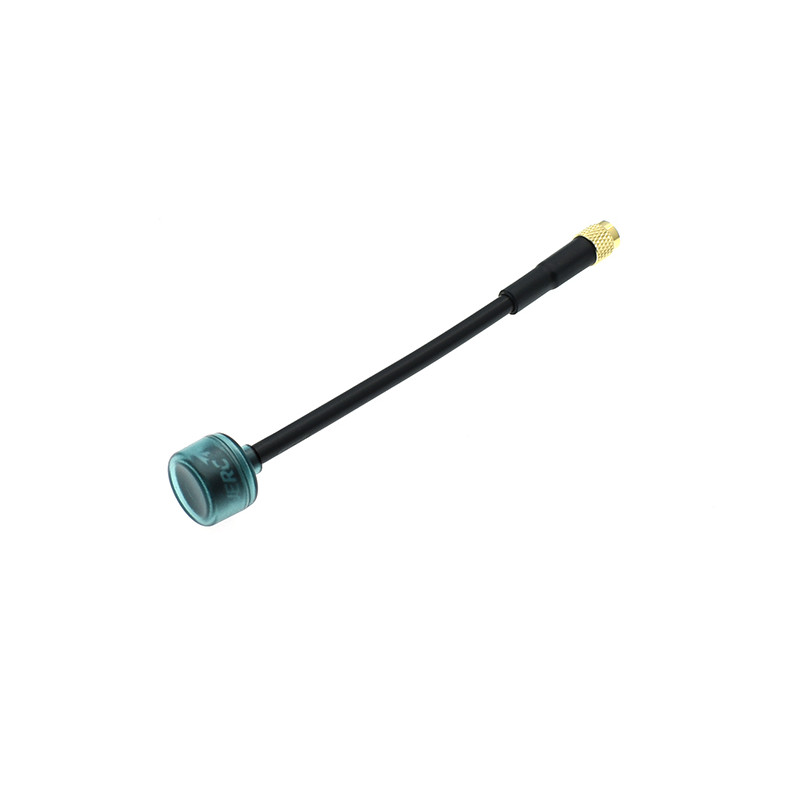

CORE 5.8 - RP-SMA 125mm Antenna - RHCP By TrueRC
En stock
€16.90
€14.37
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
TrueRC's CORE 5.8 antennas are unique in having a refined RF design that provides excellent consistency across units and different cable configurations.
A very durable outer shell protects these antennas from crashes.
The CORE are available in three colors to best suit your style!
Bullet points
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- Clear indication of polarization direction
- Smooth radiation pattern with even gain in all directions
- Excellent axial ratio and efficiency
- Flexible coax cable option that deflect impacts
- Exclusive knurled True-SMA for easy tightening
Specifications
- Gain : 1.9dBic
- Polarization : RHCP
- Length : 125mm
- Connector : RPSMA
- Cross-Polar Rejection : -10 to -20dB
- Bandwidth : 5.5GHz-6.1GHz
- Radiation Efficiency : 98%
- SWR : <=1.2:1
- Dimensions(head) : 16.9mm dia. x 13.1mm height.
- Cable : TrueRC RG316S/RG402/RG178 coax
Included
- 1x Core 5.8 antenna
Customer reviews
Acheté pour remplacer l'antenne d'origine des VR03 Goggles du bundle Cetus X. Pas d'amélioration de la réception en raceband 8 25/100mw (en combinaison avec l'antenne CORE 5.8 - UFL 45mm - RHCP - TrueRC). Je n'ai pas poussé la VTX au dessus de 100mw sur le Cetus X sinon elle surchauffe rapidement à base vitesse et je perds le signal (même avec l'antenne d'origine)
très bien
