Manufacturer : MenaceRC / Référence : MENPRI-RH

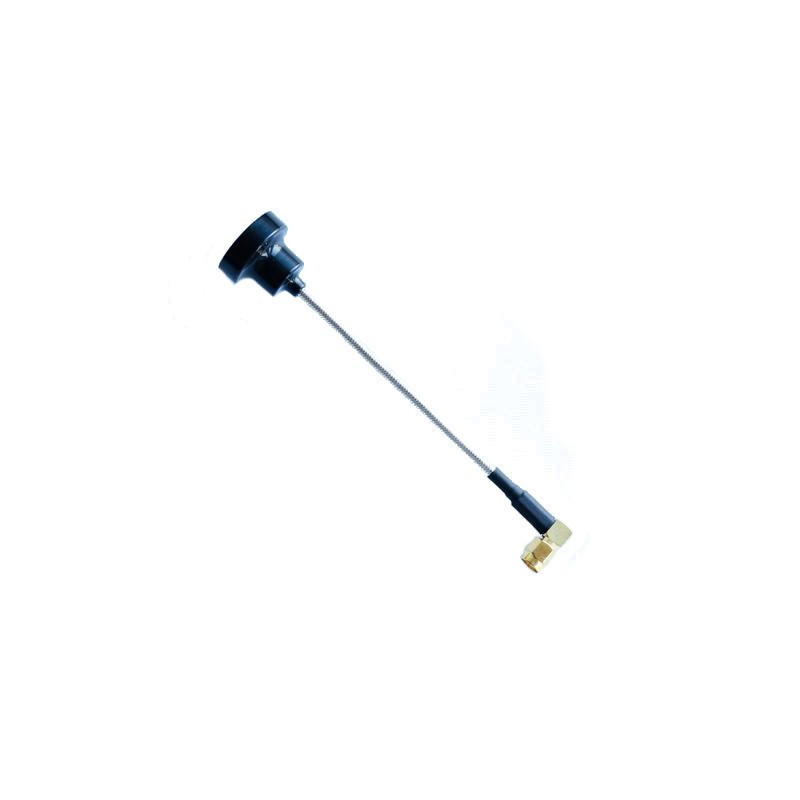

Periscope Antenna RHCP - 90° 5.8Ghz Menace RC
En stock
€10.40
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Technical characteristics
The new Periscope Antenna by MenaceRC gets the active part of the antenna above your head for clearer signal for not only flying behind yourself but in all directions.
The Periscope Antenna raising the active part of the antenna above your head for clearer signal for not only flying behind yourself but in all directions.
Proven technology of the Periscope used from our Raptor range of small compact Omni antennas that deliver a smooth radiation pattern and a high axial ratio with its unique PCB pagoda construction designed by Maarten Baert.
Features
- 5.8Ghz above your melon with excellent omni directional
- Tuned longer coaxial cable for minimal losses.
- Unique PCB construction allows manufacturing within fine tolerances
- Clearer video reception with upto 20% greater signal received than other omni antenna topology with higher gain
- High Axial Ratio for reversed polarity rejection.
- Robust injection moulded case for crash protection
Specifications
- Centre frequency 5.8 GHz
- Frequency Range: 5550 – 6050 MHz
- Matching S11 < -20dB, VSWR <1.22
- Gain: 1.09dB with efficiency: 92%
- Axial Ratio <1.3
- Beam width: 360 degrees
- Left or Right Hand Circular Polarised ( LHCP or RHCP)
- SMA 90 Degree Connector
- Height: 138mm
- Weight: 14grams
Customer reviews
merci livraison rapide
Nickel
Fonctionne très bien avec mes lunettes EV300D
Bien
Pas encore testé
Parfait pour les EV300
ras !
Honnêtement fait le taff même très bien ! Combine avec une new helical 3 de ort c’est le top
Impeccable
Conforme à l'attendu
Bien
Good length for FPV goggles (goes a bit above the head). Good reception so far with a micro-axii on the quad, and true-d on the goggles.
Ok pas de surprise
Nickel
Parfaite, monte bien au dessus de la tête, capte bien
Pratique pour la réception derrière les lunettes. Par contre attention à bien la serrer car elle peut tomber sur son axe.
