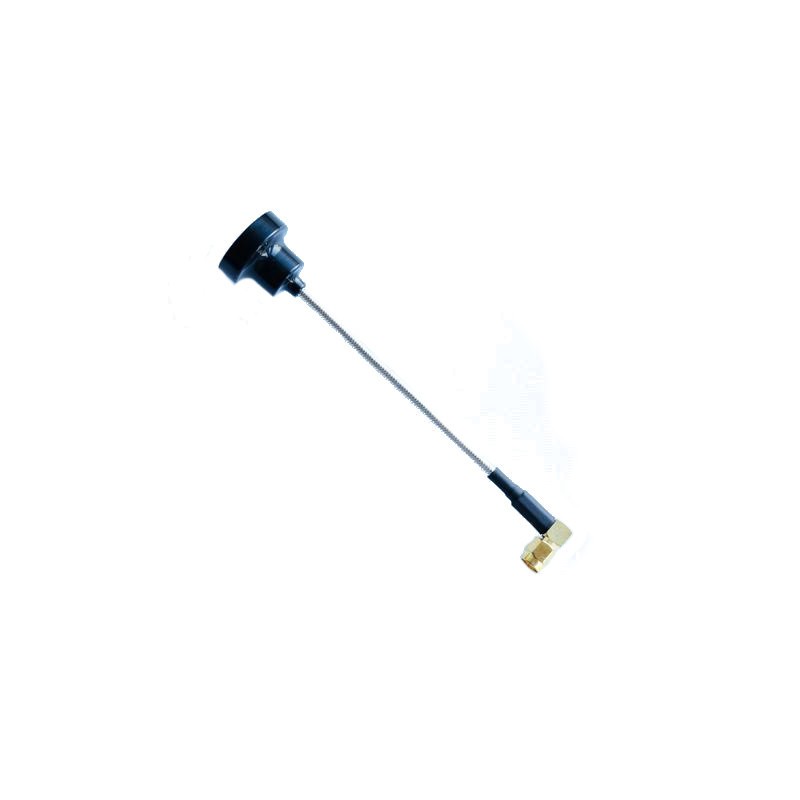

The new Periscope Antenna by MenaceRC gets the active part of the antenna above your head for clearer signal for not only flying behind yourself but in all directions.
The Periscope Antenna raising the active part of the antenna above your head for clearer signal for not only flying behind yourself but in all directions.
Proven technology of the Periscope used from our Raptor range of small compact Omni antennas that deliver a smooth radiation pattern and a high axial ratio with its unique PCB pagoda construction designed by Maarten Baert.
5.8Ghz above your melon with excellent omni directional
Tuned longer coaxial cable for minimal losses.
Unique PCB construction allows manufacturing within fine tolerances
Clearer video reception with upto 20% greater signal received than other omni antenna topology with higher gain
High Axial Ratio for reversed polarity rejection.
Robust injection moulded case for crash protection
Centre frequency 5.8 GHz
Frequency Range: 5550 – 6050 MHz
Matching S11 < -20dB, VSWR <1.22
Gain: 1.09dB with efficiency: 92%
Axial Ratio <1.3
Beam width: 360 degrees
Left Hand Circular Polarised (LHCP)
SMA 90 Degree Connector
