Manufacturer : TrueRC / Référence : CORE-UFL-45MM-LHCP

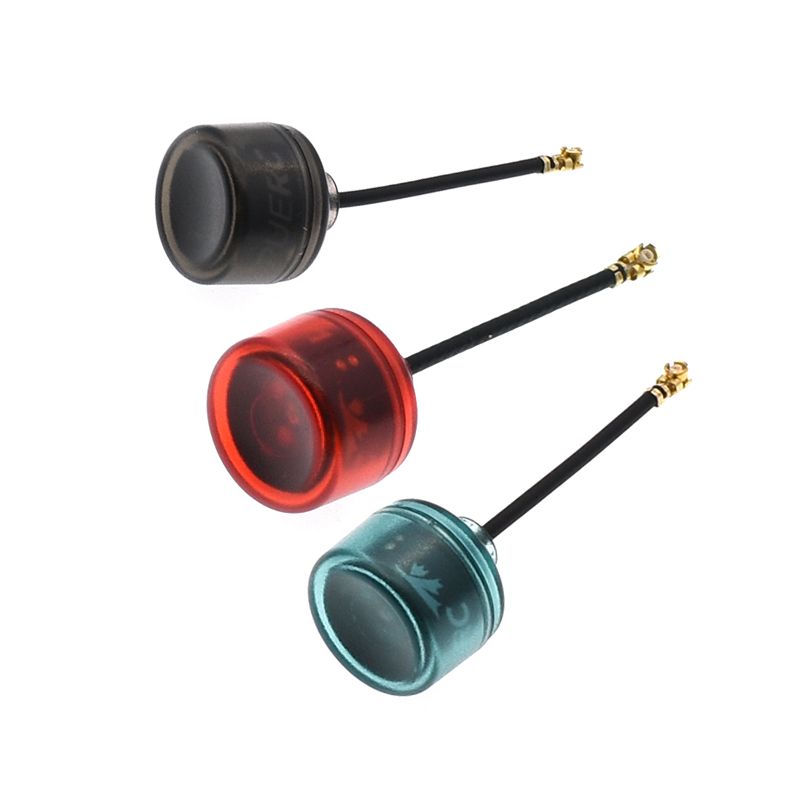

CORE 5.8 - UFL 45mm Antenna - LHCP By TrueRC
Hors stock
€16.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
TrueRC's CORE 5.8 antennas are unique in having a refined RF design that provides excellent consistency across units and different cable configurations.
A very durable outer shell protects these antennas from crashes.
The CORE are available in three colors to best suit your style!
Bullet points
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- Clear indication of polarization direction
- Smooth radiation pattern with even gain in all directions
- Excellent axial ratio and efficiency
- Flexible coax cable option that deflect impacts
- Exclusive knurled True-SMA for easy tightening
Specifications
- Gain : 1.9dBic
- Polarization : LHCP
- Length : 45mm
- Connector : UFL
- Cross-Polar Rejection : -10 to -20dB
- Bandwidth : 5.5GHz-6.1GHz
- Radiation Efficiency : 98%
- SWR : <=1.2:1
- Dimensions(head) : 16.9mm dia. x 13.1mm height.
- Cable : TrueRC RG316S/RG402/RG178 coax
Included
- 1x Core 5.8 antenna
