Manufacturer : VCI / Référence : VCI-2204-2550KV

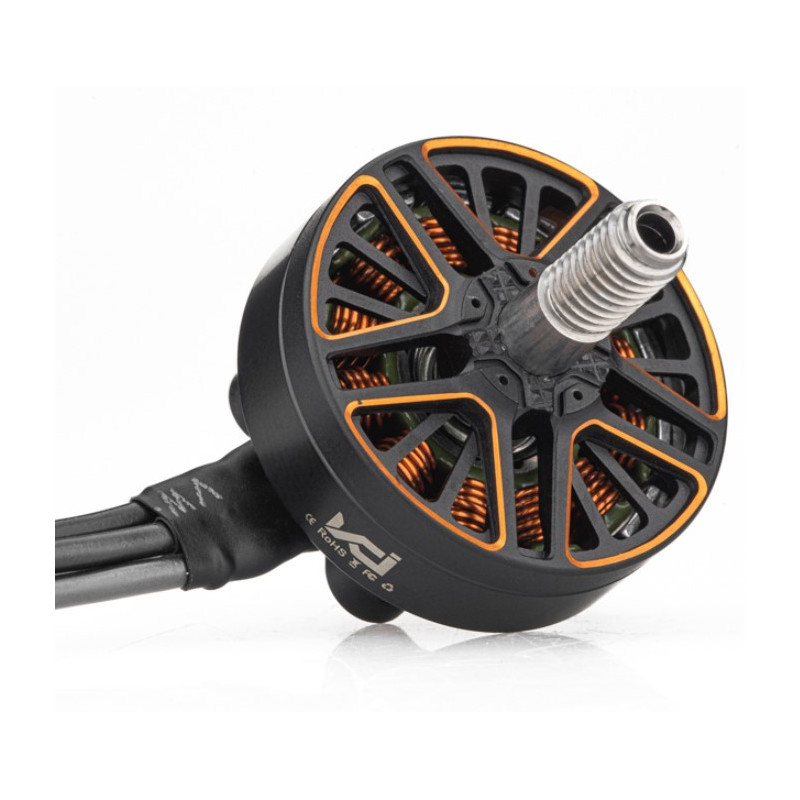

VCI Spark 2204 - 2550KV Motor By VCI

En stock
€19.90
Same day shipping

2 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Discover Vulcan Innovation and its 2204 motors.

These 2550KV motors offer precise control and a very fast response time.

Their reduced body provides unparalleled agility, even in tight spaces.

The VCI Spark 2204 have a M5 nut shaft and will be perfect combined with the Gemfan D90-3 propellers.

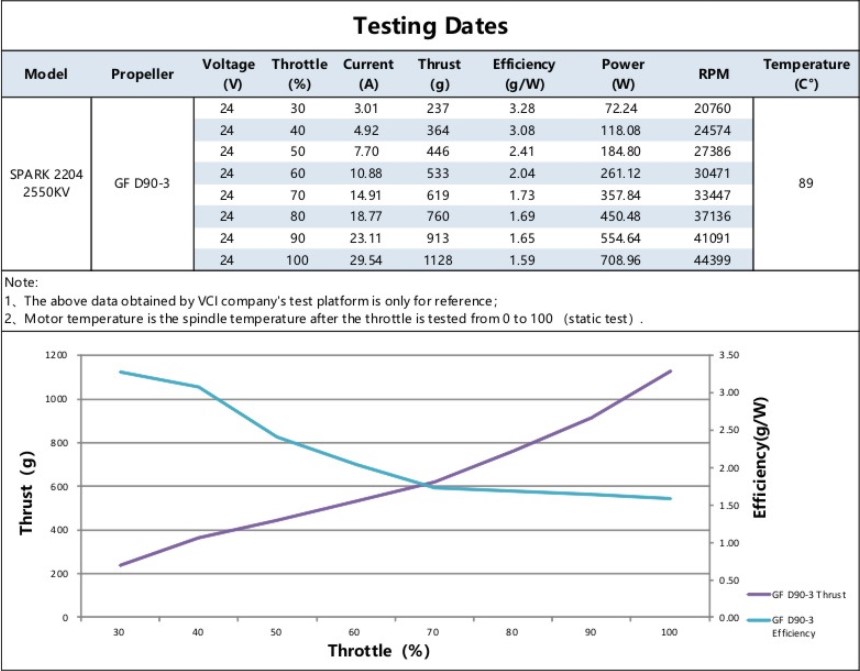

Specifications

  • KV: 2550
  • Configuration: 12S14P
  • Internal Resistance : 85mΩ
  • Shaft length : 13.1mm
  • Rated voltage : 6S (24V)
  • Peak current : 29.54A
  • Idle Current (10V) : 0.5A
  • Magnets : N52SH arc
  • Stator size : ⌀22*L4mm

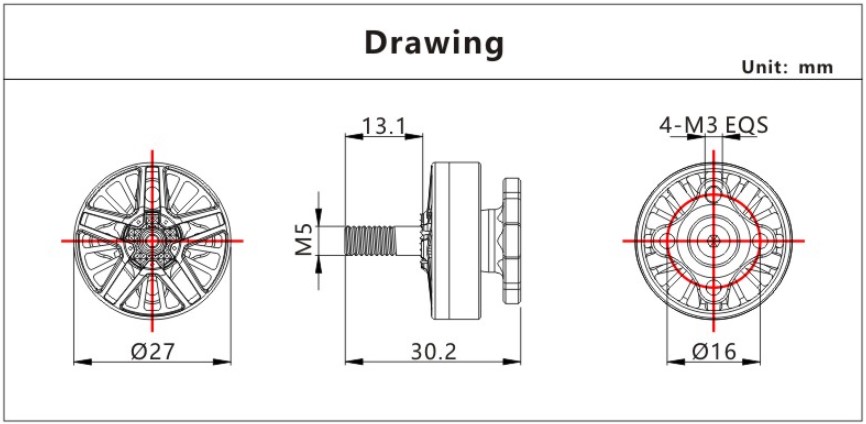

  • Dimensions : ⌀27*L30.2mm
  • Shaft diameter : M5
  • Silicone wire : 20AWG 150mm
  • Max power : 708.96W
  • Weight (with cable) : ~23.3g

Included

  • 1x VCI 2204 motor
  • 1x Set of screws
  • 2x Nut
