Manufacturer : VCI / Référence : VCI-1403-4300KV

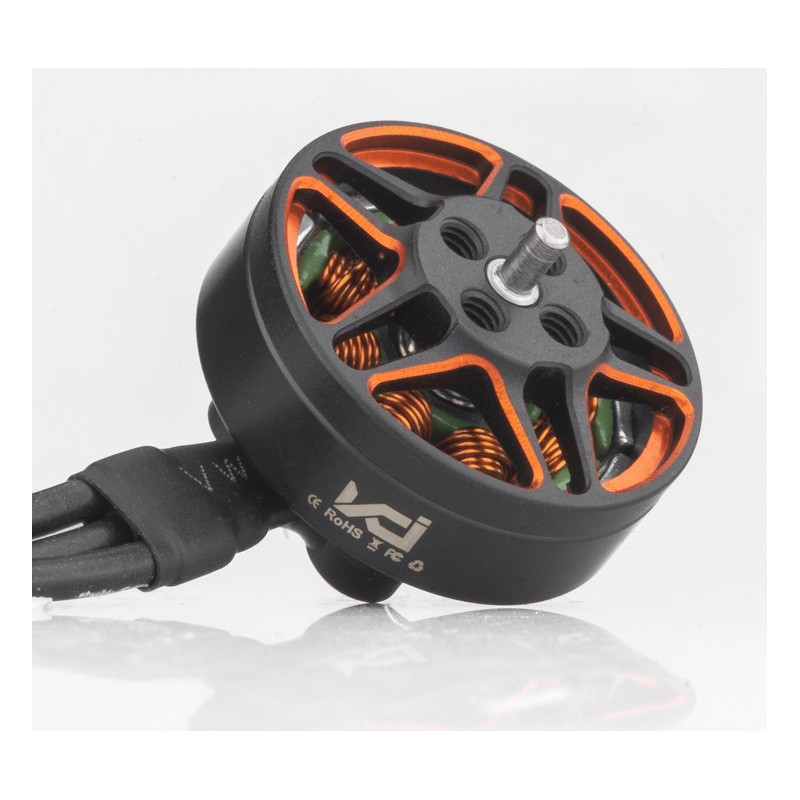

VCI Spark 1403 - 4300KV Motor By VCI

Hors stock
€11.90
Out-of-Stock Notify me when the product is available again

2 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Discover Vulcan Innovation and its 1403 motors intended for micro whoops.

These 4300KV motors offer precise control and a very fast response time.

Their reduced body provides unparalleled agility, even in tight spaces.

The VCI Spark 1403 have a 1.5mm pressure shaft and will be perfect combined with the Gemfan 3052-3 propellers.

Specifications

  • KV: 4300
  • Configuration: 9S12P
  • Internal Resistance : 265mΩ
  • Shaft length : 3mm
  • Rated voltage : 3S (12V)
  • Peak current : 10.3A
  • Idle Current (10V) : 0.4A
  • Magnets : N52SH arc
  • Stator size : ⌀14*L3mm
  • Dimensions : ⌀19*L15.4mm
  • Shaft diameter : ⌀1.5mm
  • Silicone wire : 24AWG 100mm
  • Max power : 123.6W
  • Weight (with cable) : ~9.2g

Included

  • 1x VCI 1403 Motor
  • 1x Set of screws
