Taker F405 BLS 50A Stack By GEPRC
Hors stock
€66.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

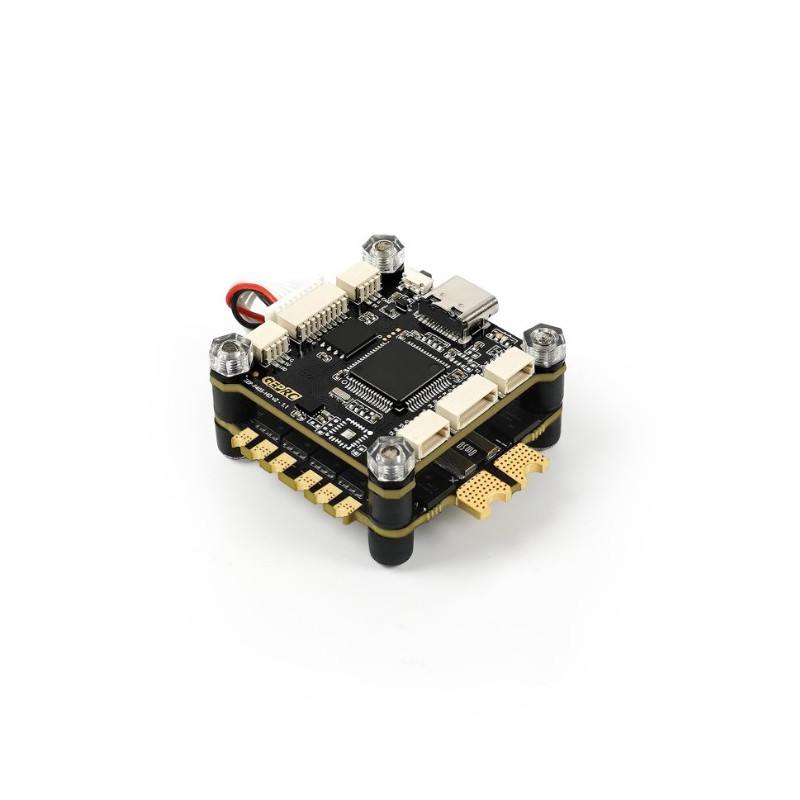

The Taker F405 BLS 50A stack from GEPRC has been specially designed for DJI.
Use its STM32F405, the ICM42688P gyro, the integrated 16M blackbox and the BLHeli_S 50A 4in1 ESC to get an extraordinary experience.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
FC
- MCU: STM32F405
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugging into DJI Air Unit
- Black Box: 16M onboard
- USB Connector: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V,9V dual BEC
- Firmware Target: GEPRCF405
- Size: 36.8×36.8mm, hole 30.5×30.5mm
- Input Voltage: 3-6S LiPo
- UART: 6
- Power Filter: Integrated LC filter
- Weight: 7.7g
ESC
- Input Voltage: 3-6S Lipo
- Galvanometer: Support
- Continuous Current: 50A
- Burst Current: 55A（5s）
- Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600
- Size: 42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
- Weight:13.7g
- Target: G_H_30
Bullet points
- Mainstream STM32F405 chip
- Latest ICM42688P gyro
- 16M blackbox storage
- Integrated LC filter
- USB Type C interface upgrade
- Directly plugged into the DJI unit
Included
- 1x Flight Controller
- 1x ESC
- 1x Capacitor
- 1x DJI Air Unit Adapter Cable
- 1x Flight Controller Adapter Cable
- 1x XT60 Power cable
- 4x M3*30 Screws
- 4x M3*24 Screws
- 8x Nylon nuts
- 8x Silicone grommets
- 2x sh1.0 4pinsilicone cable
- 1x Camera connection cable
