SPEEDX2 1303.5 5500KV Motor By GEPRC

In stock
€13.25

View More Info
This product earns you 2 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

100% secure payment with

Paypal
Paypal 4x 4X PayPal
Alma 2X 3X 4X
Ajouter à la Wishlist
SPEEDX2 1303.5 5500KV Motor By GEPRC - Drone-FPV-Racer.com

Detailed Description

GEPRC's SpeedX2s are extremely innovative with cutting-edge styling and a unique design.

These motors are perfect for every rider building their own 2" cinewhoops.

In a titanium color, the 1303.5 in 5550KV guarantee torque, force and fast response speed!

Specifications

KV 5500
Shaft Type T-Mount
Shaft Size 1.5mm
Size 13XX

Specifications

  • Configuration：9N12P
  • Magnet: N52H ARC
  • Stator diameter: 13mm
  • Stator height: 3.5mm
  • Shaft diameter: Φ2mm(in)1.5mm(out)

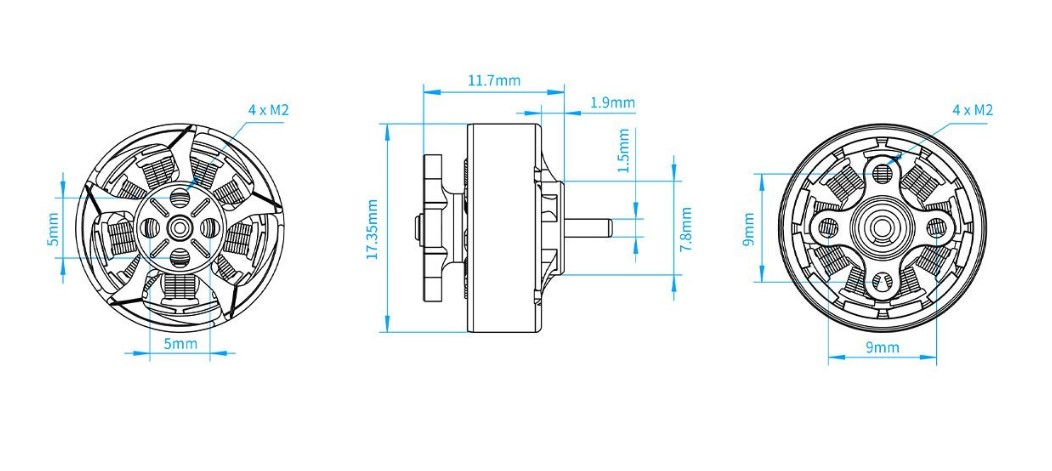

  • Dimension: Φ17.35mm*11.7mm
  • Lead wires: 28#AWG 90mm
  • Rated voltage (LiPo): 2-4S
  • Maximum power: 128.8W
  • Maximum current: 8.7A
  • Recommended ESC: 35A
  • Mounting hole: 9mmx9mm(M2)
  • Color: titanium color
  • Weight: 6.5g (90MM wire length)
  • Suitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones

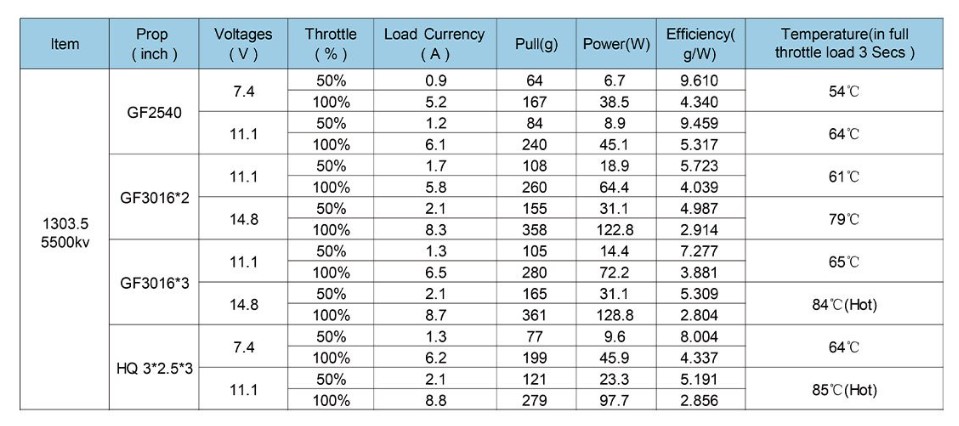

Typical Setup

Specifications

  • Configuration：9N12P
  • Magnet: N52H ARC
  • Stator diameter: 13mm
  • Stator height: 3.5mm
  • Shaft diameter: Φ2mm(in)1.5mm(out)
  • Dimension: Φ17.35mm*11.7mm
  • Lead wires: 28#AWG 90mm
  • Rated voltage (LiPo): 2-4S
  • Maximum power: 128.8W
  • Maximum current: 8.7A
  • Recommended ESC: 35A
  • Mounting hole: 9mmx9mm(M2)
  • Color: titanium color
  • Weight: 6.5g (90MM wire length)
  • Suitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones

Included

  • 1x SPEEDX2 1303.5 5500KV motor
  • 6x M2*6mm screw
  • 6x M2*8mm screw
