Manufacturer : NewBeeDrone / Référence : *SMOOV-2306.5-1750KV

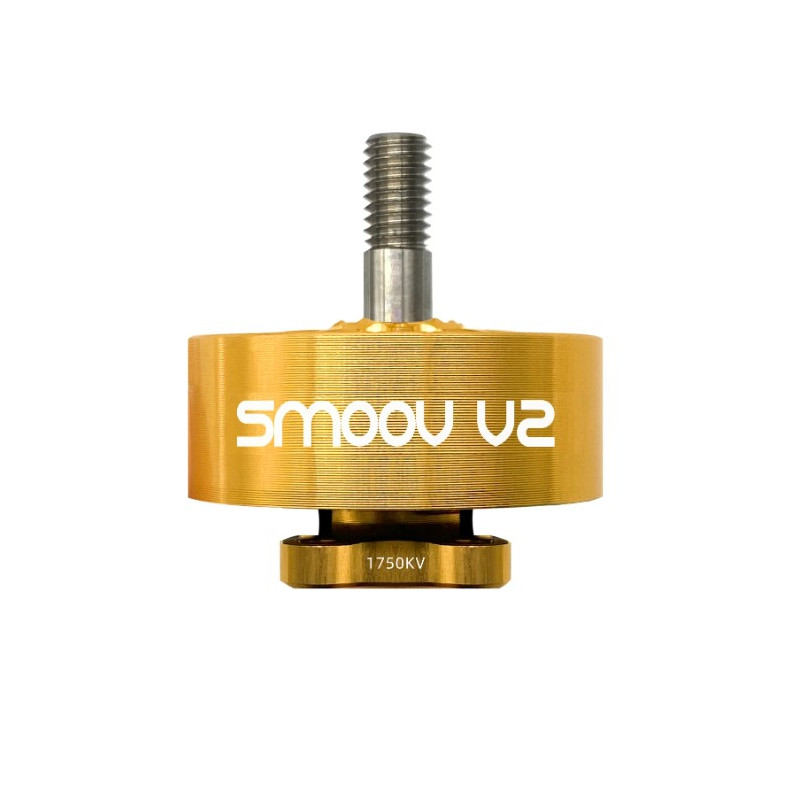

Smoov V2 2306.5 - 1750KV Motors (4pcs) By NewBeeDrone
En stock
€99.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
NewBeeDrone's Smoov V2 2306.5 motors have not only been improved compared to the first version, they are also 3g lighter.
Built with a Unibell design in 7075 aluminum alloy for better rigidity, the Smoov V2 are composed of magnetic rings.
These have no physical space between them to facilitate the removal of dirt.
The 2306.5 V2 in 1750KV are intended for a voltage of 6S as well as an amperage of 30-60A, they are equipped with an M5 shaft nut.
Bullet points
- Single-winding with 0.15mm lamination stator.
- Ring Magnet N48SH NdFeB V2
- Wire: 20AWG 150mm
- Super Smoov performance for freestyle and cinematic purpose
- Japanese NSK Bearing
- 7075 Aluminum
- 1750KV for 6S /2450KV for 4S
- 12N14P
Specifications
- Stator Diameter: 23mm
- Stator Height: 6.5mm
- Shaft Diameter: 5mm
- Motor Dimension (Dia.*Len): Ø29.4mm*31.6mm
- Weight(g): 36(include cable)
- Wire Size: 20AWG 150mm
- Suggested Propeller: 5-6
- Recommended ESC: 30-60A
- Frame Size: 200-250mm
- Bearing: NSK/NMB 684ZZ Ø9×Ø4×L4mm
Included
- 4x 2306.5 Smoov Motor
- 8x M5 aluminum nut
- 1x Set of M3*8 Round head hex socket screws
