Manufacturer : Happymodel / Référence : Sans soudure TBS-NANO-RX-SE-PP
Reciever ELRS 2.4G EP1 TCXO - Solderless - Happymodel
En stock
€19.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
No more soldering!
Find the Happymodel EP1 TCXO 2.4G already equipped with cables and connector.
No soldering on your part is now required, we've done it for you.
Once your adjustments and settings are made, all you have to do is plug in!
Note: This item is only compatible with the Argus Plug & Play stack (related accessorie / not included).
Happymodel's EP1 receiver is the hottest tiny ExpressLRS 2.4G receiver since its release.
The TCXO version, new quartz, improves performance and reliability. It brings precise frequency and excellent performance in any environment.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Specifications
- Type: ISM2.4GHz
- ESP8285 MCU
- SX1280(SX1281)IMLTRT RF Module
- Omni directional antenna
- Frequency Range: 2400 MHz to 2500 MHz
- Receive refresh rate: 25HZ~500Hz
- Working voltage: 5v
- Weight: 0.41 gram(without antenna)
- Dimension: 10mm*10mm*6mm
- Peak gain: 2.23dB
- Default Firmware out of factory: HappyModel_EP_2400_RX V3.0.1 version
- Built-in a TCXO (temperature compensated crystal oscillator)

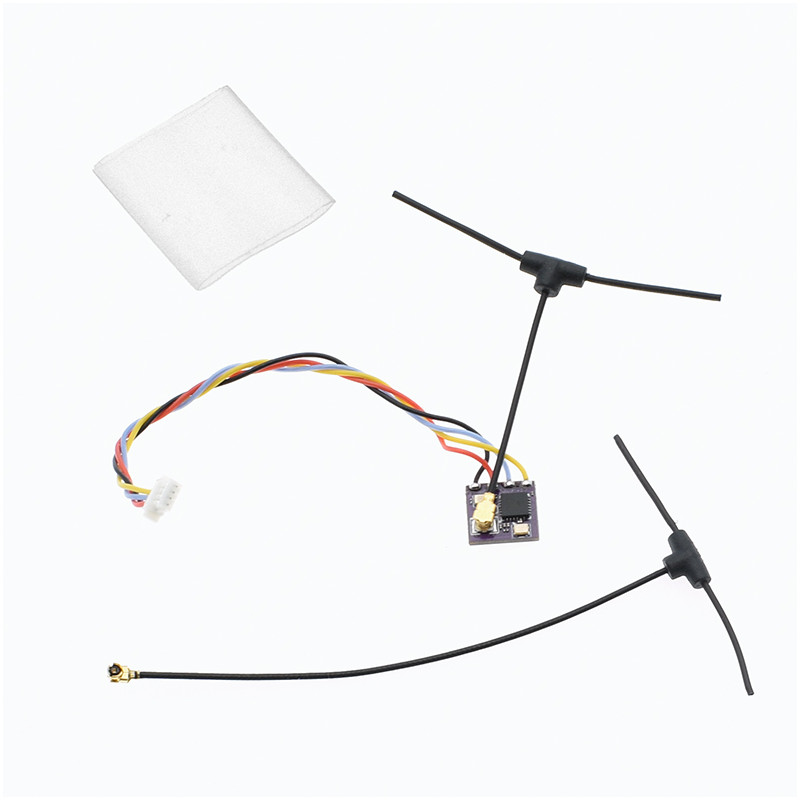

Included
- 1x EP1 TCXO ELRS 2.4G Receiver
- 1x Short antenna
- 1x Medium antenna
- 1x Shrink tube
Reciever ELRS 2.4G EP1 TCXO - Solderless - Happymodel
En stock
€19.90
