Manufacturer : GEPRC / Référence : GP105524
RAD Mini VTX 5.8G 1W By GEPRC
Hors stock
€62.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The GEPRC Rad Mini VTX is the brand's latest high-power 1W VTX. It features four adjustable power levels and a maximum output of 1000mW.
Suitable for short- and medium-range flights, the analog VTX guarantees high-quality image transmission.

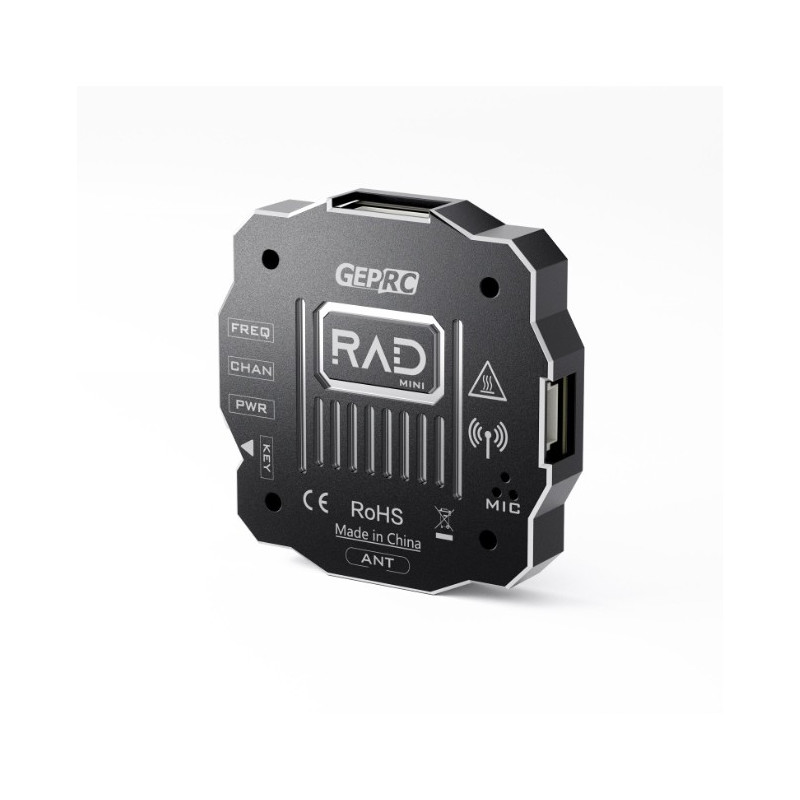

The Rad Mini features a highly durable aluminum housing for improved heat dissipation and shock resistance.
With a 20x20mm PCB mounting hole and a single M2 threaded hole, it is recommended to install the VTX on the rear of the frame.
* Important note: French regulations impose a maximum power of 25mW in the 5.8 Ghz frequency, as well as dual control piloting to practice immersion flight (FPV). The responsibility of Drone-FPV-Racer cannot be engaged for any use of this material without an adequate license.
Specifications
- Input voltage：DC7-28V（2-6S Battery）
- Output voltage: 5V@600mA(power 5V to Camera)
- Input impedance: 75Ω
- Protocol: IRC Tramp
- Antenna connector: MMCX
- Cable connector：SH1.0 5pin+SH1.0 3pin
- Output power：25mW/200mW/500mW/1000mW/PIT MODE

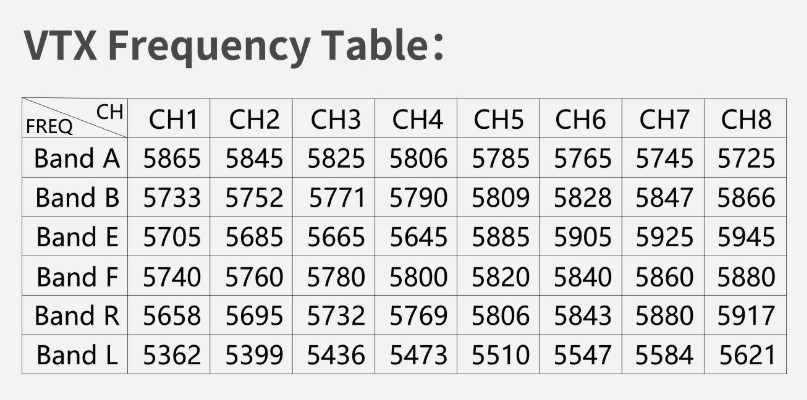

- Frequency band : Universal frequency band(40CH),American FCC frequency band(37CH),European EU frequency band(26CH)
- Video format: PAL/NTSC
- Microphone: Built in microphone
- Mounting hole: 20x20mm
- Size: 30.83×30.83mm
- Net weight: 4.7g
- With metal housing: 8.4g
Included
- 1x GEPRC RAD MINI 5.8G 1W VTX
- 1x Copper tube antenna MMCX 80mm
- 1x MMCX to SMA（Internal foramen）connector
- 1x SH.0 5pin VTX cable(100MM)
- 1x SH1.0 to SH1.25 camera cable(65MM)
- 1x Set of screws
