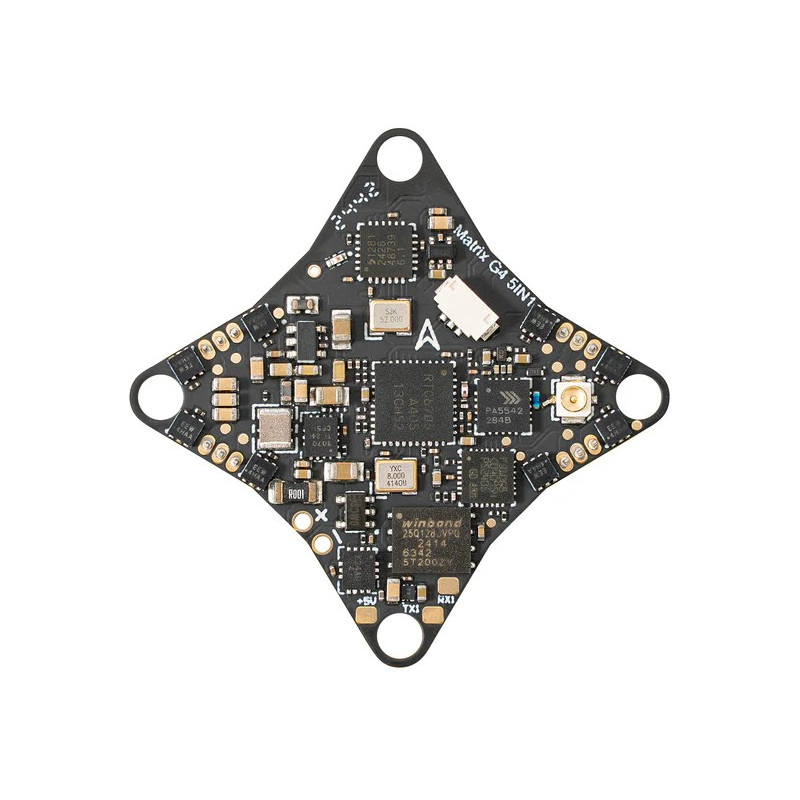

Matrix 1S G473 5A 400mW 5in1 AIO V1.0 By BetaFPV
Hors stock
€53.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
BetaFPV's Matrix brushless AIO is specifically designed for 1S whoops. Designed for beginners and FPV enthusiasts, this 5in1 AIO integrates a G473 flight controller, 5A ESC, ExpressLRS 2.4G receiver and 400mW VTX.
The 1mm thick board ensures durability during intense training while the integrated motor connectors simplify installation, eliminating soldering.
Note : upon receipt of your item, please connect it via USB and calibrate the accelerometer before starting to solder.
FC
- MCU: STM32G473CEU6
- Gyro: ICM42688P
- Blackbox memory: 16MB
- Sensor: Voltage & Current
- BEC: 5V, Max. 3A
- UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
- BetaFlight OSD: AT7456E
- ESC: 5A continuous
- RX: Serial ELRS 2.4GHz (V3.4.3)
- VTX: 5.8GHz 48 channels, Max. 400mW
- FC firmware: Betaflight_4.5.0_BETAFPVG473
- USB port: SH1.0-4Pin
- Motor Connector: JST1.25
- Battery connector: BT2.0
- Mounting hole size: 26mm x 26mm
- Weight: 3.92±0.1g
ESC
- Power input: 1S Only
- Current: 5A continuous, 8A peak
- ESC firmware: A_X_5_96KHz_v0.19.2.hex for BB51 Bluejay firmware
- Digital signal protocol: DSHOT300, DSHOT600
VTX
- Output power: 25/100/200/400/PIT
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.0
- Modulation type: FM
- Frequency control: PLL
- All harmonic: Max -50dBm
- Frequency stability: ±100KHz (Typ.)
- Frequency precision: ±200KHz (Typ.)
- Channel carrier error: ±1.5dB
- Antenna port: 50 Ω
- Operating temperature: -10℃~+80℃
Included
- 1x Matrix 1S 5en1 AIO
- 1x Type-C to SH1.0 Adapter
- 1x SH1.0 4Pin Adapter Cable
- 4x M1.2*4 Self-tapping Screws
- 4x M1.4*4 Self-tapping Screws
- 4x Shock Absorbing Ball
