Matek Flight Controller H743-SLIM V4

Out of stock
€79.92
View More Info
This product earns you 8 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
Matek Flight Controller H743-SLIM V4 - Drone-FPV-Racer.com

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

Detailed Description

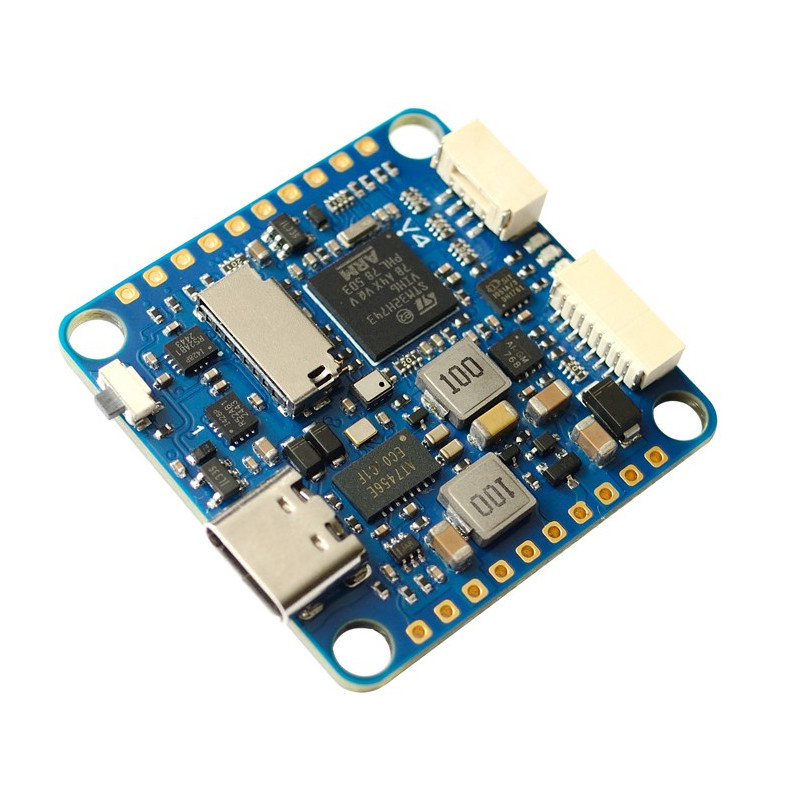

The Matek H743‑SLIM V4 is a top-tier flight controller designed for RPAS and FPV systems demanding powerful performance, precision, and sleek integration. Built on the STM32H743VIH6 microcontroller clocked at 480 MHz, it features 1 MB of RAM and 2 MB of flash memory, ensuring ample resources for advanced firmware and functionalities (ArduPilot, Betaflight, and soon iNav).

It includes dual ICM42688P IMUs, providing highly accurate inertial data and redundancy. The barometer is an Infineon DPS368, offering improved altitude measurement performance. Visual overlays are handled by the integrated AT7456E OSD, with Blackbox logging facilitated by a microSD card slot

V4 improvements

  • Increase the output current of BEC5V from 2A to 2.5A, and raise the filtered VBAT current from 1A to 2A.
  • Add TVS protection on Input voltage
  • Add protections on more MCU I/O.
  • Replace DPS310 with DPS368(environmentally protected against water (IPx8), dust & humidity)

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Specifications

Video Analog
Processor H7
Gyro ICM42688-P
Barometer With Baro
Mount Size 30.5x30.5mm

Specifications

  • MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
  • IMU: Dual ICM42688P
  • Baro: DPS368
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD card socket
  • 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
  • 13x PWM outputs(including “LED” pad)
  • 2x I2C
  • 1x CAN
  • 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • 1x SPI3 breakout
  • USB Type-C(USB2.0)
  • 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
  • 1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
  • Dual Camera Inputs switch
  • 5V 0r Vbat(2A) filtered power ON/OFF switch
  • DJI FPV OSD is supported by any spare UART
  • Vbat Input: 6~36V (2~8S LiPo) with TVS protection
  • BEC: 5V 2.5A cont. (Max.3A)
  • LDO 3.3V: Max.200mA
  • VBat filtered output 2A for VTx and camera
  • No Current Sensor built-in
  • ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K)
  • Static power: 200mA@5V with Betaflight,  150mA@5V with ArduPilot
  • ArduPilot firmware : MATEKH743
  • BetaFlight firmware : MATEKH743
  • INAV firmware : MATEKH743
  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
  • Dimensions: 36 x 36 x 5 mm
  • Weight: 7g

Included

  • 1x H743-SLIM-V4
  • 6x Silicon grommets M4 to M3
  • 1x JST-SH1.0_8pin cable, 5cm
  • 2x JST-SH1.0_8pin connectors
  • 1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
