Manufacturer : AXIS Flying / Référence : MANTA-6-FRAME

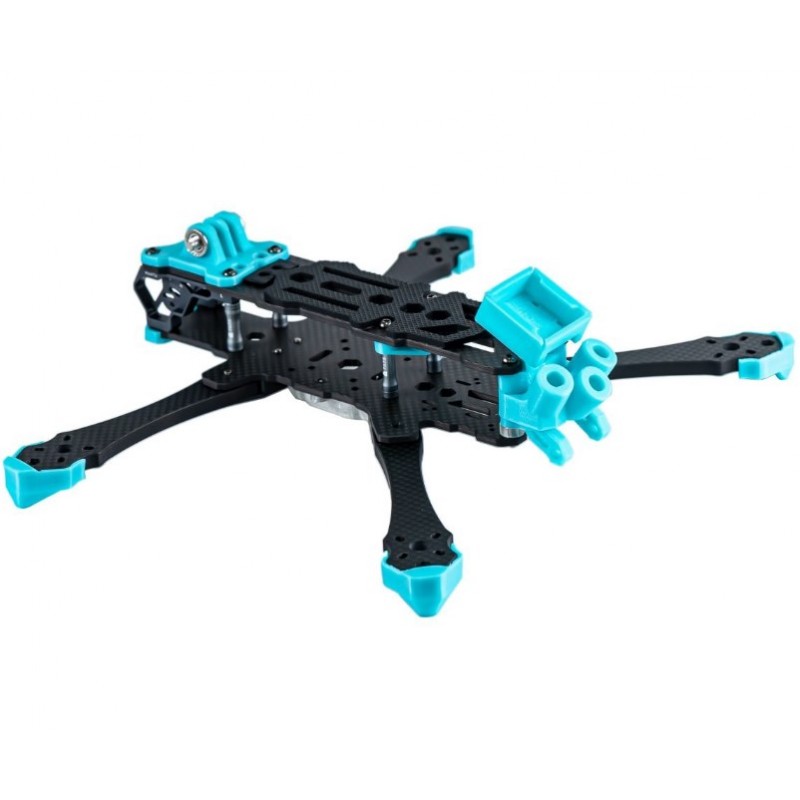

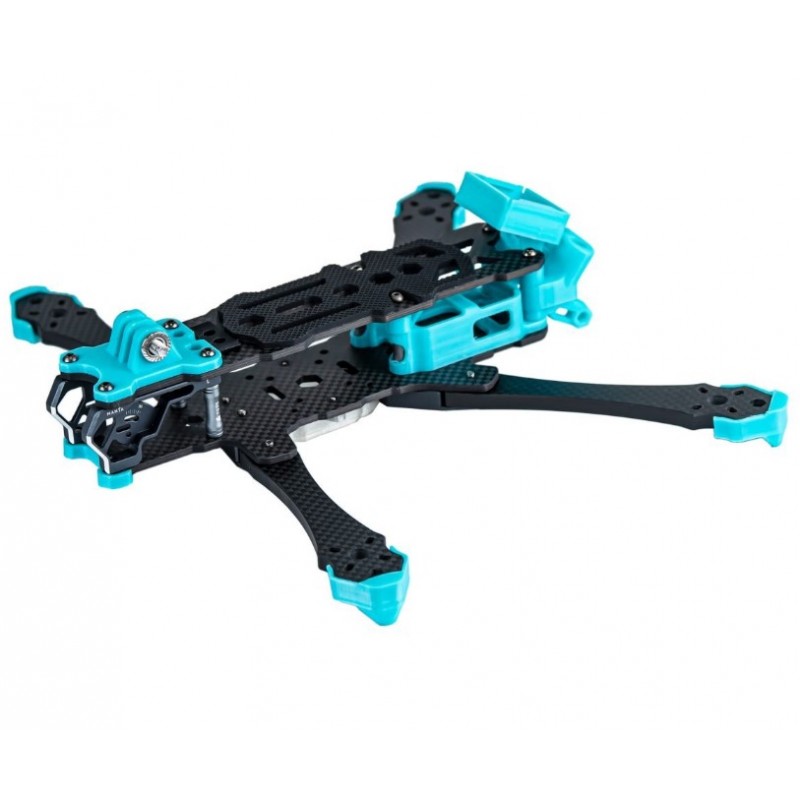

Manta 6" Frame Kit By AxisFlying

En stock
€89.90
3D Print : For analog
3D Print : For analog
Same Day Shipping

9 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Technical characteristics

The Manta 6" is the solution for "mid-range" cinematic. This DeadCat T700 carbon frame is sold with a choice of 3D printed parts for an analog system or an HD system.

Specifications

  • Geometry: Deadcat
  • Wheelbase: 262mm
  • Weight: 183g (without TPU)
  • Bottom plate thickness: 3mm
  • Top plate thickness: 3mm
  • Carbon: T700
  • Top/bottom distance: 25mm
  • Arm width: 11.8mm-23.8mm
  • Arm thickness: 6mm
  • Motor c-clip hole: 7mm
  • Camera space: 14-20mm
  • Stack mounting : 20*20mm / 30.5*30.5mm
  • VTX mounting : 20*20mm / 25.5*25.5mm / 30.5*30.5mm
  • Motor mounting: 16*16mm / 19*19mm

Recommended parts (not included)

  • Props : 6/6.1"
  • Motors : Axis C246 - 1650KV
  • Battery : Tattu 1550mAh
  • Stack : Istack Axis

Included

  • 1x Manta 6" frame
  • 2x Strap
  • 1x TPU set
  • 2x M2*7 screw
  • 2x M3*9 screw
  • 4x M3*25 standoff
  • 2x M3*16 screw
  • 2x M3*12 screw
  • 2x M3*20 standoff
  • 2x M3*16 screw
  • 10x M3*8 screw
  • 4x M3*10 screw
  • 4x M3*12 screw
  • 12x M3*9 screw
