Manufacturer : Diatone / Référence : JH61302
-20%

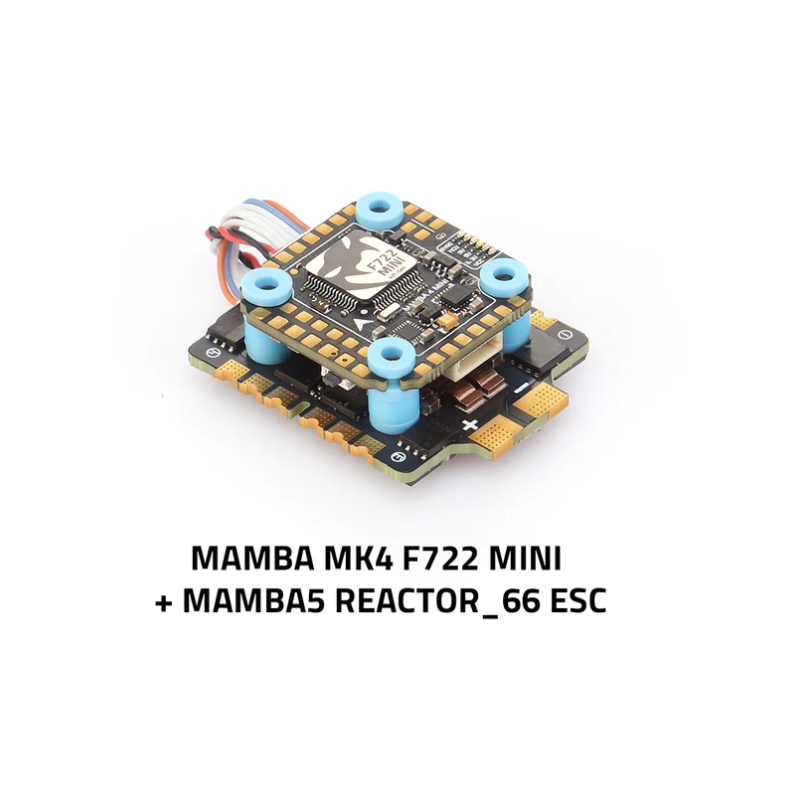

Mamba MK4 F722 Mini Reactor 66 Stack By Diatone
Hors stock
€134.90
€107.92
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Related products
Technical characteristics
This Mamba MK4 F722 Mini Reactor 44 stack from Diatone has an MPU6000 gyro, an OSD, a barometer as well as 6 UARTS.
The Reactor 66 ESC supports 4-6S voltage.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
MK4 F722 MINI
- MCU: 216MHz STM32F722
- GYRO: MPU6000
- OSD: AT 7456E
- Blackbox: 16M Flash Memory
- Uarts: 6Set
- Receiver : TBS/SBUS/IBUS/DSM
- I2C : Yes
- F.Port : Yes
- Buzzer Pad : Yes
- Baro : Yes
- CURR Pad : Yes
- ESC Signal : 8 set
- BEC 3.3V : 0.5V
- BEC 5V : 2.5A
- BEC 9V : 2A
- MB LED : Yes
- BF LED : Yes
- Air unit port : Yes
- VTX Switch : Yes
- BEC Protection : Yes
- Receiver protection : Yes
- TVS Protection : Yes
- Input : 6S Lipo
- Soft ware : Betaflight
- Mounting : 20x20mm/M2
- Size : 29x29.5x6.5mm
- Weight : 6.0g
ESC Reactor 66
- Input voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
- Continuous current: 66A × 4
- Burst: 105A (10S)
- BEC : NO
- Target: BLHeli_32 MAMBA5_Reactor_66
- Soft : DSHOT300/600/1200
- PWM : 24~128k
- Mounting : 20x20mm, M2/M3
Included
- 1x MK4 F722 MINI FC
- 1x Reactor 66 ESC
- 5x Silicone damper M3
- 5x Silicone damper M2
- 5x M3 ESC insulation column
- 5x M2 ESC insulation column
- 1x 8pin single-ended cable for FC
- 2x 8pin cable
- 1x 6pin cable for air unit
