Manufacturer : Diatone / Référence : JH60908
Mamba MK4 F405 Mini Flight Controller By Diatone
En stock
€57.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

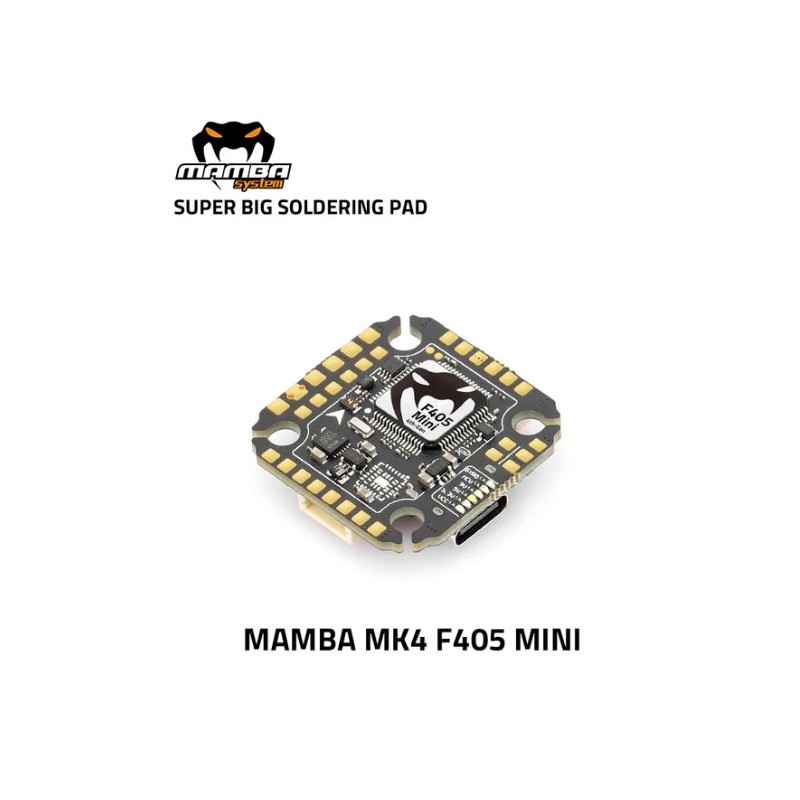

Here is Diatone's Mamba F405 Mini MK4 flight controller equipped with the ICM42688P gyro. This fourth generation of FC brings in particular more space thanks to the new style of pads which will reduce welding errors.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
Specifications
- MCU: 168MHz STM32F405
- GYRO: ICM42688P
- OSD: AT 7456E
- Blackbox: 16M Flash Memory
- Uarts: 6Set
- Receiver : TBS/SBUS/IBUS/DSM
- I2C : Yes
- F.Port : Yes
- Buzzer Pad : Yes
- CURR Pad : Yes
- ESC Signal : 6 set
- BEC 3.3V : 0.5V
- BEC 5V : 2.5A
- BEC 9V : 2A
- MB LED : Yes
- BF LED : Yes
- Air unit port : Yes
- VTX Switch : Yes
- BEC Protection : Yes
- Receiver protection : Yes
- TVS Protection : Yes
- Input : 6S Lipo
- Soft ware : Betaflight
- Mounting : 20x20mm/M2
- Size : 29x29.5x6.5mm
- Weight : 6.0g
Included
- 1x MK4 F405 MINI FC
- 5x Silicone damper M3
- 5x Silicone damper M2
- 5x M3 ESC insulation column
- 5x M2 ESC insulation column
- 1x 8pin single-ended cable for FC
- 2x 8pin cable
- 1x 6pin cable for air unit
