Manufacturer : GEPRC / Référence : GP105917

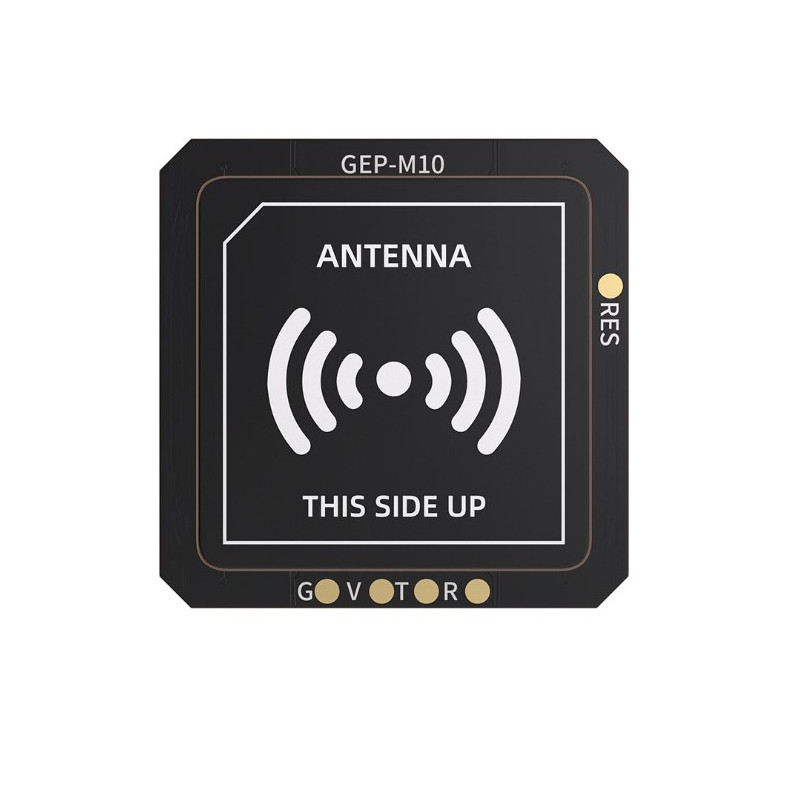

M10 DQ GPS Module By GEPRC
En stock
€26.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The GEPRC GEP-M10 series GPS module is defined as small, with fast positioning, stable connection and convenient to use.
It supports GPS + BDS + Galileo + QZSS + SBAS.
The M10 DQ has in addition to the others a magnetometer, an I2C output and a barometer.
Small volume ceramic antenna provides good reception ability.
Specifications
- GPS chip: u-blox M10
- Magnetometer: QMC5883L
- Barometer: DPS310
- Input voltage: 3.3V-5V
- Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
- Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
- Channel: 72ch
- Navigation satellites: Up to 32 pieces
- Output protocol: UART(ublox), I2C
- Baud rate: 115200bps
- Output Frequency: 10Hz
- Speed Accuracy: 0.05 m/s
- Horizontal positioning accuracy: 2D ACC1.5m(Weather)
- Timing accuracy: 30 ns
- Receiver sensitivity: Trace-162dBm, Capture-160dBm
- Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
- Maximum acceleration: 4G
- Size: 22*22*8.2mm
- Weight: 8g
Included
- 1x GPS Module
- 1x 4pin cable
- 1x Manual
- 1x Heat Skrink
