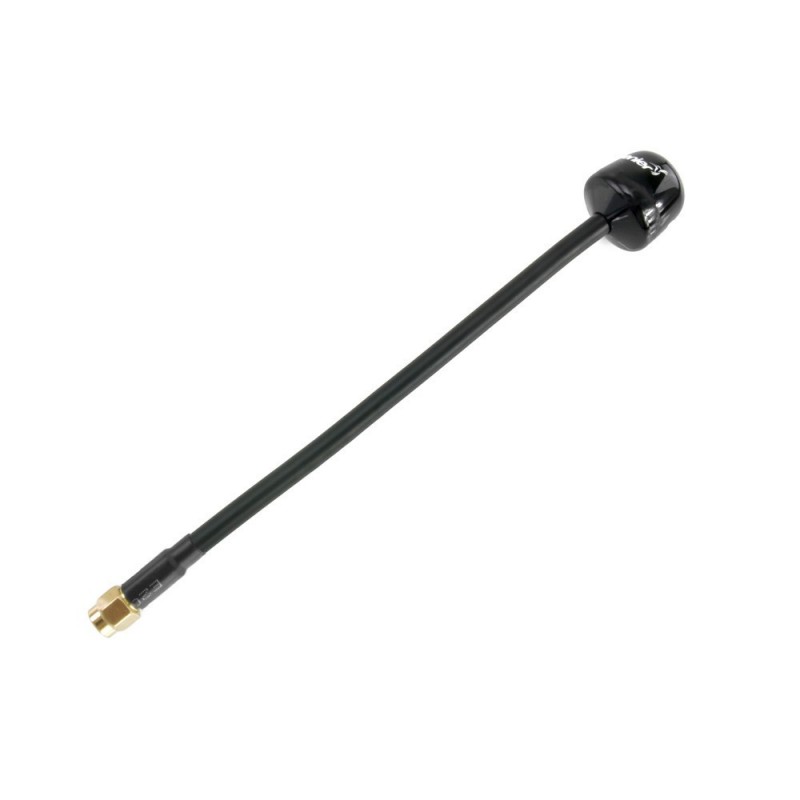

Lumenier AXII 2 Long Range 5.8GHz Antenna (RHCP)

Lumenier

10518

The AXII 2 takes the best parts of the original AXII antenna and makes them even better. Improved range, bandwidth, and durability make the AXII 2 a true successor to the throne.

Learn more

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 loyalty points that can be converted into a voucher of 0,40 €.

Produit indisponible pour le moment

X

Get emailed when we have stock again


21,90 €

  • Degressive Shipping Costs

  • Same day shipping for orders placed before 3:30 pm (Monday to Friday)

More info

The Lumenier AXII is known to be the most versatile and highest performing antenna line for FPV today. Lumenier has been able to improve on the best and make it even better!

Improved Features

  • Significantly Improved Range with a Higher Gain (2.2dBic Gain)
  • Wider Bandwidth (5.3-6.2GHz)
  • Cleaner Signal And Better Rejection to Interference
  • More Durable - Improved Injection Molded Housing
  • Virtually Perfect Axial Ratio

While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds or freestyle quads.

The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.

Super Tough

Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing. The 125mm long semi-rigid RG402 cable allows for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support.

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.Lumenier AXII 2 Long range

Specifications

  • Gain: 2.2dbic
  • Axial ratio: 1.0 (near perfect)
  • Bandwidth: 5.3GHz-6.2GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.5:1
  • Weight: 10.8g
  • Size: 125mm x 17.5mm
  • Cable: Semi-rigid RG402
  • Connector: SMA
  • Works great as both a transmitting or receiving antenna
  • Compatible with other styles of 5.8GHz RHCP antennas

Polarization

  • Right Hand Circular (RHCP)

Includes

  • 1x Lumenier AXII 2 Long Range 5.8GHz Antenna (RHCP)
