Kakute H7 Mini V1.5 By Holybro
En stock
€76.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Related products
Technical characteristics
Holybro's Kakute H7 Mini Flight Controller is loaded with features like a barometer, an OSD, 6 URTS and more.
It builds on the better performance of its F7 predecessor and further improves the components and layout.
The FC is equipped with a "VTX ON/OFF Pit switch, which will allow you to completely turn off the video transmitter via a switch on your RC transmitter.
Specification
- MCU - STM32H743 32-bit processor running at 480 MHz
- IMU - ICM42688P
- Barometer - BMP280
- OSD - AT7456E
- Onboard Flash: 128Mbits
- VTX ON/OFF Pit Switch – Switch can be enable using USER1 in Betaflight Mode tab. Warning: Do not enable this pit switch if you are using DJI FPV Remote Controller
- 6x UARTs (1,2,3,4,6,7)
- 9x PWM Outputs (8 Motor Output, 1 LED)
- Battery input voltage: 2S-6S BEC 5V 2A
- Mounting - 20 x 20mm, Φ3.6mm hole with M3 & M2 Grommets
- Dimension - 31x30x6mm
- Weight – 5.5g
- JST-SH1.0_8pin port (For 4in1 ESCs)

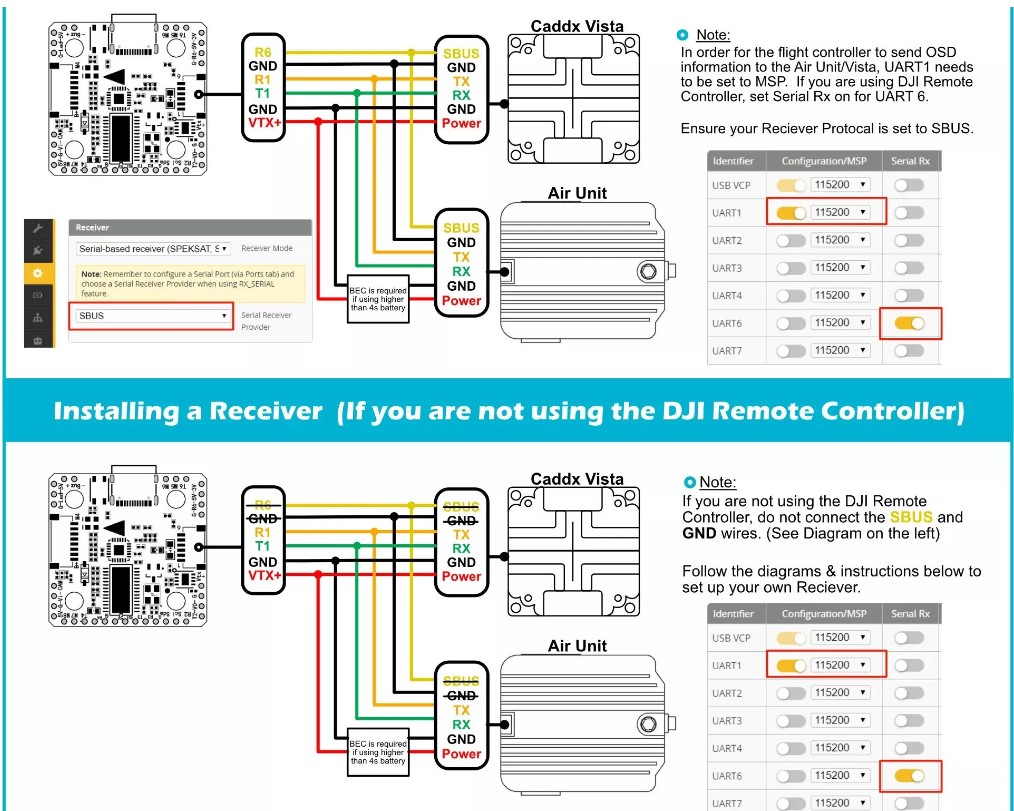

- JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)
Package Includes
- 1x Kakute H7 Mini Flight Controller
- 4x M2 Silicon Grommets
- 4x M3 Silicon Grommets
- 1x JST-SH1.0_8pin Cable (For ESCs)
- 2x JST-SH1.0_6pin Cable (For DJI Air Unit)
- 1x JST-SH1.0_6pin Colored Silicon Cable (For Caddx HD System and other VTX)
Holybro_KakuteH7Mini_Manual (966.86KB)
Holybro_KakuteH7Mini_Manual_en
