Manufacturer : Holybro / Référence : 11069
Kakute F722 By Holybro
En stock
€49.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

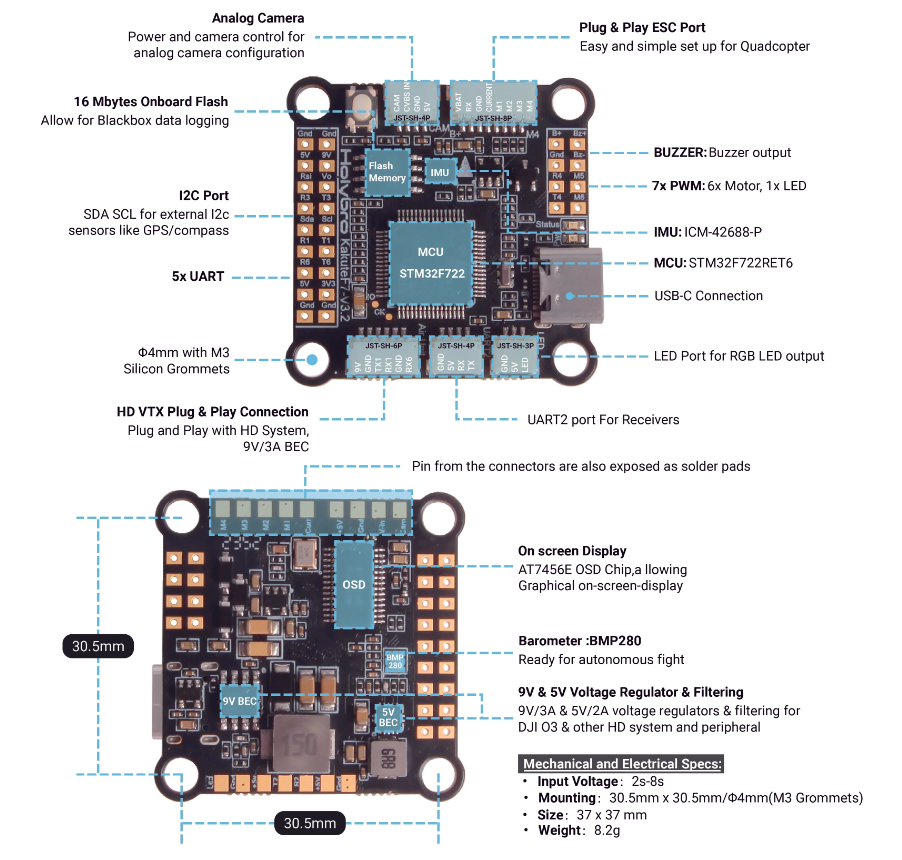

Holybro's Kakute F722 flight controller features a USB-C connector, an ICM42688-P gyro, a BMP280 barometer, 5 UARTs and a 9V/3A, 5V/2A, 3.3V/0.2A BEC.
Supporting 3-8S voltage, the flight controller mounts in 30.5x30.5mm and is compatible with both analog and digital VTX systems.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
Specifications
- MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
- IMU: ICM42688-P (SPI)
- Barometer: BMP280
- OSD: AT7456E
- 5x hardware UARTS (UART1,2,3,4,6)
- 7x PWM Outputs (6 Motor Output, 1 LED)
- Onboard 16 Mbytes for Blackbox logging
- Battery input voltage: 3S - 8S
- BEC: 9V/3A, 5V/2A, 3.3V/0.2A
- Weight: 8g
- Dimensions: 35x35mm
- Mounting Holes: Standard 30.5 x 30.5
- 2x JST-SH 8pin port for ESC
- 1x JST-SH 6pin port for HD VTX
- 2x JST-SH 4pin port for Receiver & Analog Camera
- 1x JST-SH 3pin port for LED
- USB Type -C
Included
- 1x Kakute F722 Flight Controller
- 4x M3 Silicon Grommets
- 1x JST-SH1.0_8pin 150mm Cable (For ESCs)
- 2x JST-SH1.0_6pin 80mm & 150mm Cable (For DJI Air Unit)
- 1x JST-SH1.0_6pin Colored Silicon 150mm Cable (For Caddx HD System and other VTX)
- 1x JST-SH1.0_4pin to Dupont 150mm Cable
- 1x JST-SH1.0_3pin to Dupont 150mm Cable
- 1x JST-SH1.0_4pin to Molex1.25 150mm Cable
Customer reviews
Très bon produit !!!!
RAS.
