Manufacturer : Iflight / Référence : BF16305

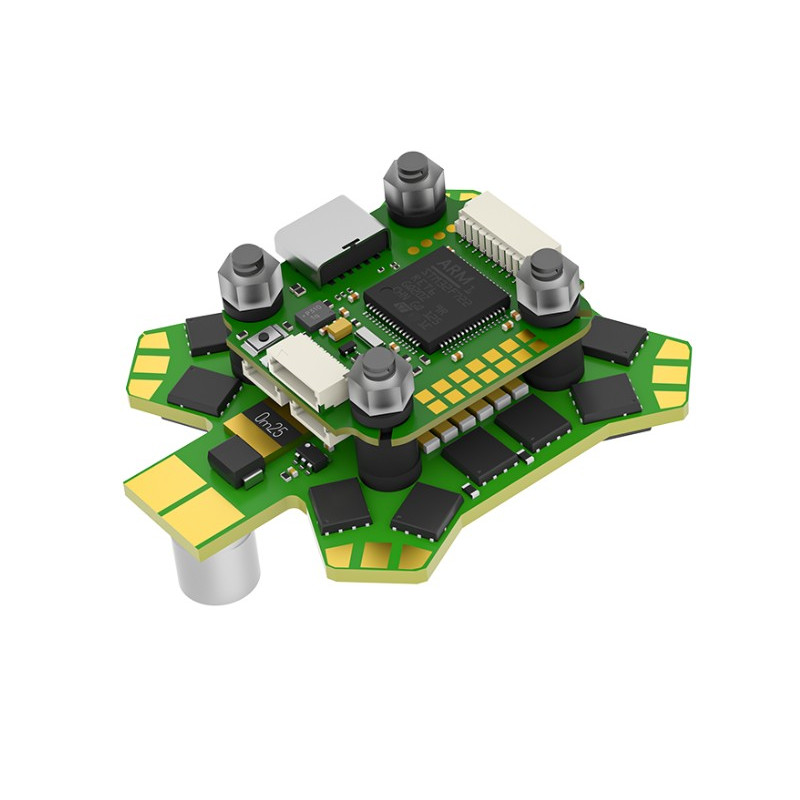

Blitz Mini F722 E55R Stack By Iflight
En stock
€144.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Blitz Mini F722 E55R stack is mounted in 20x20mm, it has quality components to reduce electrical noise.
It is equipped with a connector to connect a VTX HD without soldering. Indicator LEDs also allow visual debugging.
The F722 V1.2 flight controller has an ICM42688 gyro, a DPS310 barometer and an 8Mb blackbox.
The 4in1 E55R ESC supports a voltage of 2-6S for a max output of 65A in burst.
FC
- MCU: STM32 F722
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456
- Flash: 8MB (Blackbox flash)
- UARTS: 6
- I2C serial: SDA/SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722
- Mount pattern: 20x20 mm / φ4
- Dimensions: 30.5x27 mm
- Weight: 5g
Wiring suggestion
- UART 1 for VTX HD / Analog
- UART 2 for a Receiver
- UART 3/4/5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemetry
ESC
- Mounting Holes: 20*20mm/Φ4mm
- Weight: 15.3g
- Supports 2-6S Lipo input
- MCU： BB21
- Constant: 55 Amps
- Burst: 65 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/OneShot etc.
- Target: IFLIGHT_BLITZ_G2 / IFLIGHT_BLITZ_G3 32.9 (blheli_32)
Included
- 1x BLITZ Mini F7 V1.2 Flight Controller
- 1x BLITZ Mini E55R 4in1 2-6S ESC
- 1x Set of dampers
- 1x Set of wires for FC
