Technical characteristics

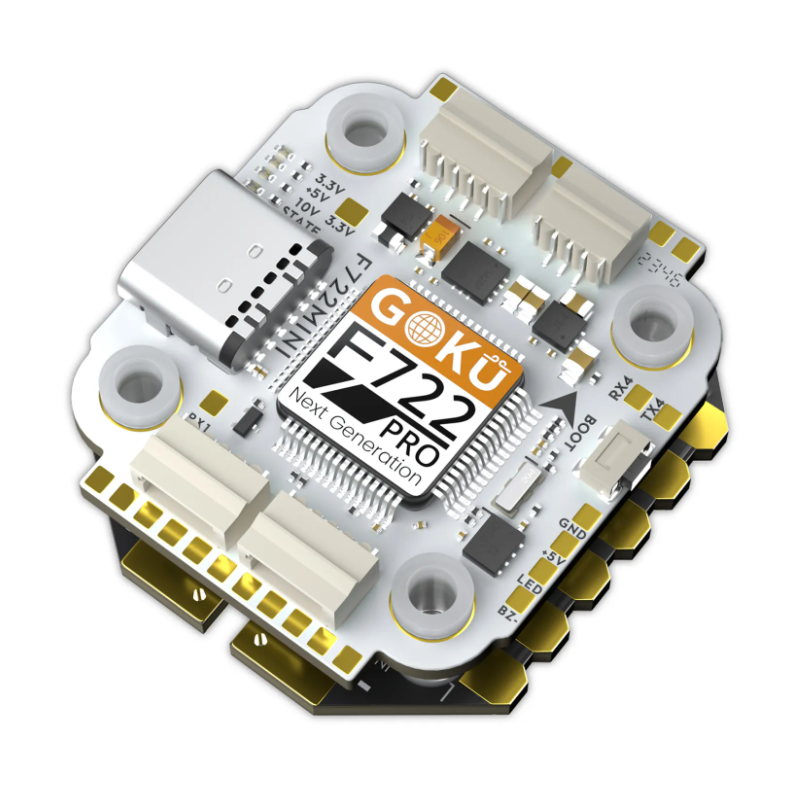

Flywoo's next generation F722 PRO Mini V2 flight controller not only offers a high-performance 20x20mm STM32F722 main chip, but it also supports 8 motor outputs.

Combined with the GOKU G45M 4in1 ESC, it forms a high-performance mini stack equipped with an ICM42688 gyro, a 16MB blackbox or even a 10V/2A 5V/2A BEC.

Plug&Play functionality has been specially designed for the DJI O3 Air Unit.

F722 PRO Mini V2 FC

  • BF Flight Controller Firmware: FLYWOO F722PRO
  • INAV Firmware: FLYWOO F722PRO
  • MCU: STM32F722
  • Gyroscope: ICM42688
  • OSD: AT7456E
  • Barometer: DP310
  • Black Box: 16MB
  • UARTS: 1/2/3/4/5/6
  • Input Voltage: 7.4V-26V/2-6S LiPo
  • BEC: 10V2A/5V2A
  • Flight Controller Size: 32mm x 29mm x 20mm
  • Mounting Holes: M2 20x20mm
  • Weight: 9.9g

GOKU G45M 32bit 4in1 ESC

  • Support AM32
  • Support Dshot300, Dshot600,Dshot1200
  • PWM frequency: 24k-128k
  • Input Voltage: 2-6S Lipo
  • Continuous Current: 45A
  • Firmware: GOKU_F4A32_PRO

Included

  • 1x GOKU F722 PRO Mini V2 45A stack
  • 1x FC&ESC Connection Cable
  • 1x Buzzer Connection Cable
  • 1x GPS Connection Cable
  • 1x DJI O3 Connection Cable
  • 1x Receiver Connection Cable
  • 5x M3 Shock-Absorbing Ball
  • 5x M2 Shock-Absorbing Ball
  • 1x Camera Connection Cable
  • 1x Capacitor
  • 1x Set of screws
