GNSS & Compass M10Q-5883 By Matek - Solderless
Related accessories
Technical characteristics
No more soldering!

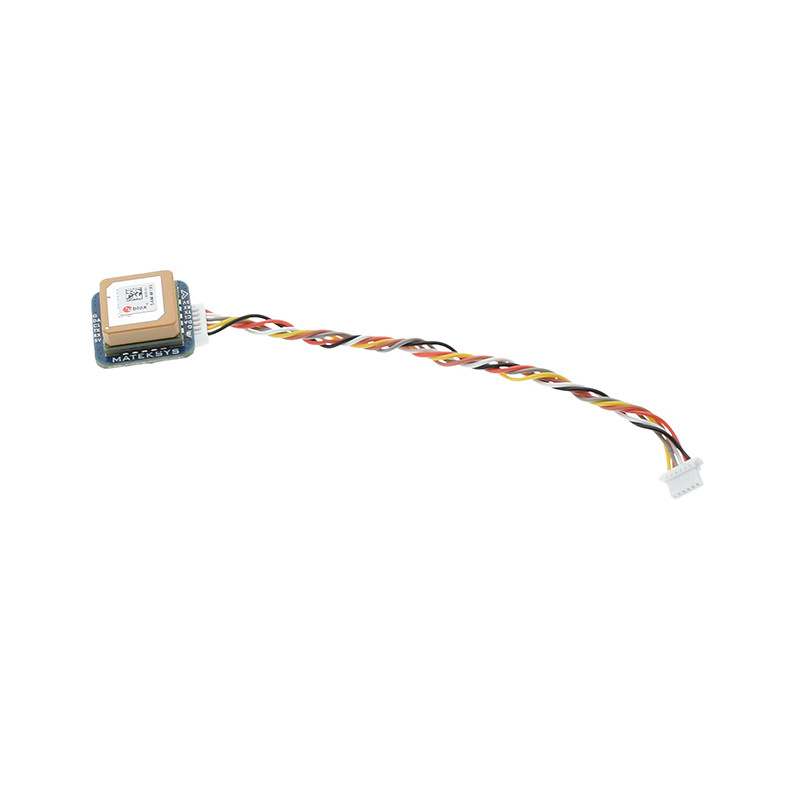

Find the M10Q-5883 GPS already equipped with cables and connector.
No soldering on your part is now required, we've done it for you.
Once your adjustments and settings are made, all you have to do is plug in!
Note: This item is only compatible with the Argus solderless stack (related accessorie / not included).
Matek's M10Q-5883 uses a u-blox SAM-M10Q-00B powered GNSS module.
In addition to supporting simultaneous reception of four GNSS (GPS, GLONASS, Galileo, Beidou), the SAM-M10Q offers exceptional sensitivity and acquisition time for all GNSS L1 signals.
The M10Q-5883 will select the best signals thanks to the large number of visible satellites, which maximizes the availability of the position, even in difficult conditions.
Finally, the high-gain patch antenna provides the best balance between performance and small size.
Specifications
- GNSS u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou)
- Magnetic Compass QMC5883L
- Patch antenna 15*15*4mm
- Input voltage range: 4~9V (5V pad/pin)
- Power consumption: 13mA
- UART baudrate: 9600 default
- Operating Temperatures: -20~80 °C
- UART(TX, RX) interface for GNSS SAM-M10Q-00B
- I2C(DA, CL) interface for Compass QMC5883L
- JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
- GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
- Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
- 20mm*20mm*12.4mm
- Cable legth : 11cm
- Weight : 8g
Included
- 1x M10Q-5883
- 1x JST-GH-6P to JST-GH-6P 20cm silicon wire
