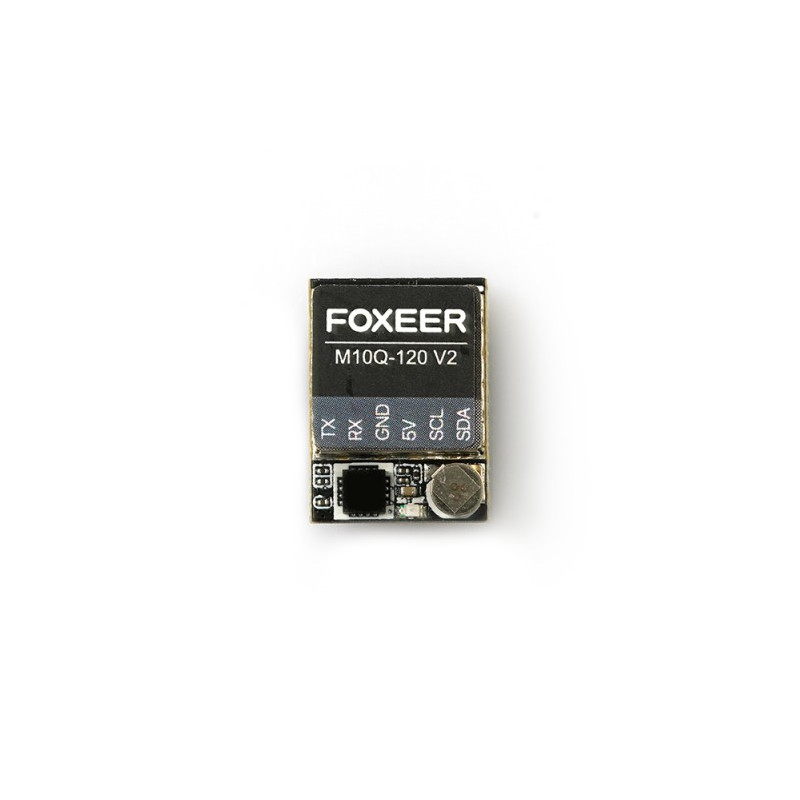

Foxeer M10Q 120 V2 GPS
Related accessories
Technical characteristics
The Foxeer M10Q 120 V2 GPS stands out as a high-performance solution for demanding FPV enthusiasts and drone racers.
It features the M10 (10th-generation) chipset, delivering enhanced reliability in signal reception and processing.
Thanks to its high-quality ceramic antenna and 5 V input voltage, it meets the requirements of modern drone setups.
This GPS module, compatible with GPS L1, GLONASS L1, BDS B1, GALILEO, ESBAS L1, and QZSS L1, provides broad satellite coverage, ensuring 1.5-meter horizontal accuracy in outdoor conditions.
The integrated IST8310 magnetic sensor guarantees stable orientation, while its ultra-compact design makes it ideal for lightweight and agile builds.
Combining durability and dynamic performance (speed up to 500 m/s, altitude up to 50,000 m), it stands as a key component for any pilot seeking to optimize their navigation system. The Dual NMEA/UBLOX protocol and update rate up to 10 Hz ensure smooth communication with your flight controller.
By choosing the M10Q 120 V2 GPS, you’re opting for a module defined by precision, reliability, and compactness.
Specifications
- Chip : M10(10th Generation Chip)
- Frequency : GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1
- Input Voltage : 5V
- Antenna : Ceramic Antenna
- Channel : 72
- Battery : Build-in
- Compass : IST8310
- Compass Orientation : Plug facing direction of flight and obviously antenna up, BF: CW 90° Flip
- Baud Rate : 115200bps
- Protocol : Dual NMEA/UBLOX
- Output Frequency : 1Hz-10Hz,10Hz default
- Speed Accuracy : 0.05m/s
- Horizontal Positioning Accuracy : 2D ACC1.5m(outdoor)
- Receiver Sensitivity : Trace -166dBm; Capture -160dBm
- Dynamic Characteristics : Height 50000m; Speed 500m/s; Acceleration : 4G
- Operating Temperature : -40C-+85C
- Storage temperature : -40C-+105C
- Weight : 2.7g
- Size : 12.5*17*5mm
V2 improvements
- Compass : IST8310
- Orientation: BF CW 90° Flip
Included
- 1x M10Q 120 V2 GPS module
