Manufacturer : NewBeeDrone / Référence : 02AC23

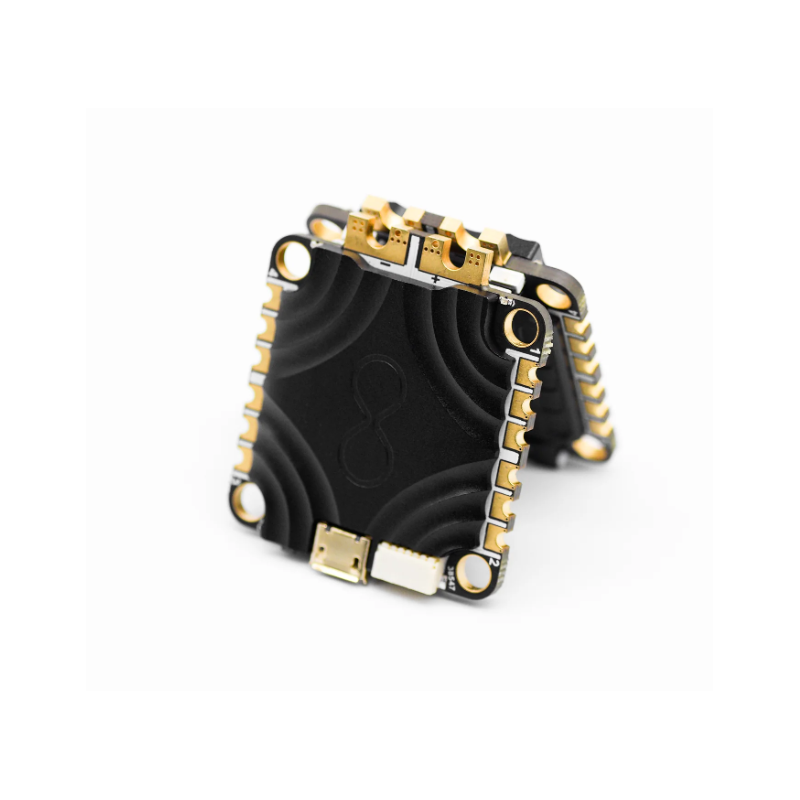

FETTec Infinity G4 MPU6000 45A 3-6S AIO By NewBeeDrone

Hors stock
€168.90
Out-of-Stock Notify me when the product is available again

17 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

This AIO InfinityAIO FETTec G4 will guarantee reliability and protection for your drone and therefore flight with confidence in any environment.

In addition to its dust and moisture-proof design, the AIO also features FETtec.

It mounts in 30.5*30.5mm and consists of two CNC aluminum heat sinks.

The Infinity has been designed to excel in any flying condition, whether racing, freestyle or cinematic.

The AIO consists of an MPU6000 gyroscope, a DJI 6pin connector, a micro USB connector as well as multiple UART ports for versatile connectivity.

It supports 3-6S voltage and is capable of handling 45A continuous current.

Note : upon receipt of your item, please connect it via USB and calibrate the accelerometer before starting to solder.


Specifications

  • MCU : STM32G474 Running FETTec Alpha Firmware 0.7-62
  • Gyro : MPU6000
  • 4x STM32G071 @64MHz FETtec ESC MCU Running FETTec ESC Firmware 1.0-241
  • 6-Pin DJI FPV Air Unit Connector
  • Micro USB Connector
  • UART1 : DJI Connector
  • UART2 : Used for Receiver
  • UART3 : Free (also connect to Fettec Analog Onboard OSD)
  • UART4 : Free
  • UART5 : Used for ESCs / TLM / Onewire
  • OneWire BUS with up to 8kHz looptime (one cable for all Motor signals and Telemetry)
  • Continuous Current : 45A
  • Burst : 55A
  • Dshot 300-2400
  • 3-6S Battery Input
  • 12V 2A Design for DJI FPV Air Unit
  • 5V 3A Power supply for external LED or GPS module
  • Dimensions: 41x37x7.6mm with 30.5x30.5mm Mounting Holes
  • Weight: 19.4gr with grommets, 18.8gr without grommets
  • FETTEC OSD support for Analog build
  • Buzzer Ready
  • 4x LED

Included

  • 1x Infinity FETtec AIO Flight Controller + ESC
  • 1x DJI O3 Cable 100mm (Silicon wire)
  • 2x 16Pin Cable 150mm (Teflon wire)
  • 13x Nylon Lock Nut
  • 5x Steel Screw M3x14
  • 4x Grommets Short, 4x Grommets Long
  • 1x 470uf 35v Electrolytic Capacitor
  • 1x XT60 Cable

Note for analog build

  • Analog build will need to setup Serial 3 to talk to the internal Analog OSD Chips.
  • Please follow the setting below to enable the Analog OSD chips.
  • Settings>FC Setup>Serial
  • MSP Port1   - Serial3
