Manufacturer : Team BlackSheep / Référence : SILK-V5

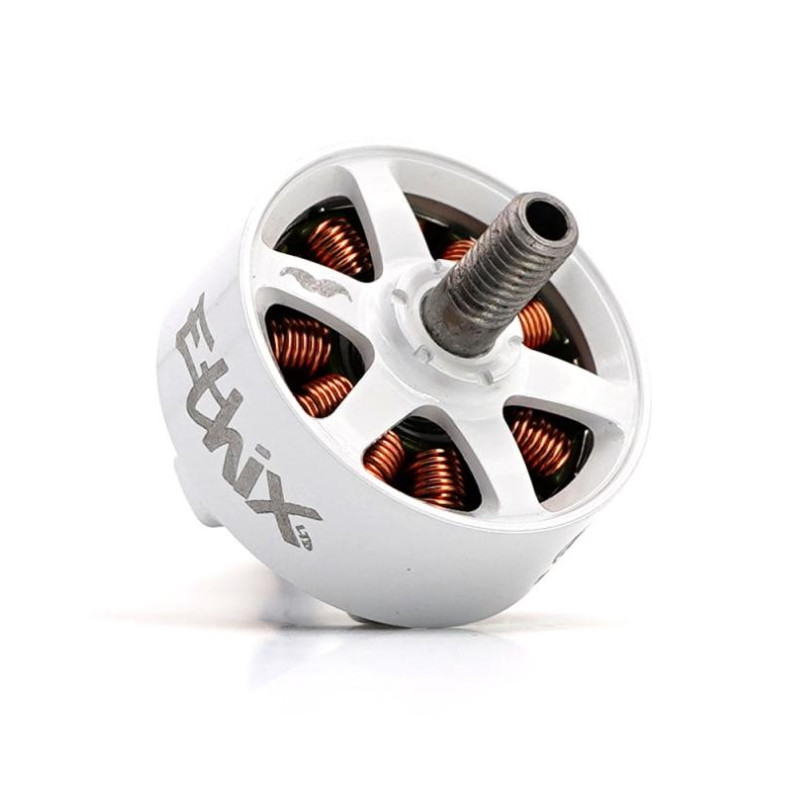

Ethix Mr Steele Silk Motor V5 By TBS
Hors stock
€33.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The fifth version of the 2307 1750KV Silk Ethix Mr Steele motor features an increased stator size and a redesigned bell housing for more durability.
V5 Bullet points
- Increased stator size 2307
- Base redesign 16x16(only) mounting holes (new structural changes for more durability)
- Complete bell redesigned (durability and smoothness in mind)
- Thick single strand copper winding
- Increased EFFICIENCY & POWER
- Complete Interchangeable motor pants redesign (thicker & more crash/low temperature resistant, better gap fitment, + more protection coverage for the “tall pants”)
- Better assembly tolerances
- Overall QC improvements
- 9mm steel bearings
- Eco-Friendly packaging
- Motor weight 33.8g (full-length cables) compared to Stout V1 at 31.5g
- Pants Weight - Low - 1g vs (0.8 v3) | Tall - 2g vs (1.8 v3)
Specifications
- Stator Size : (Diameter) 23mm*7mm
- Kv : 1750kv
- Magnets : N52SH Curved
- Windings : 13turn DLRK
- Shaft Length (mm) : 11.5mm
- Shaft Diameter (mm) : 4mm
- Shaft material : Steel
- Bearing : NMB684
- Weight (With Wires)(g) : 36.5g
- Cells (Lipo) : 6S
- Max Current (A) : 45A
- Max Burst Current (A) : 60A
- Internal Resistance (Rm) : 64mΩ
- Wire Spec (AWG) : 20#-135mm
- Base Mounting Pattern : 16x16mm
- Base Mounting Thread : M3 Thread
- Motor Overall Dimensions : φ28.6mm*18.2mm
Included
- 1x Silk V5 motor
- 1x Hardware Set
Customer reviews
Decent motor, a bit pricy for what you're getting. No o-ring, bell wobbles up and down
Best of the best
