Manufacturer : Skystars / Référence : SKY-150747

F722 Mini HD Pro + KM35 Pro BLHeli_32 Stack By Skystars

Hors stock
€99.90
Out-of-Stock Notify me when the product is available again

10 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

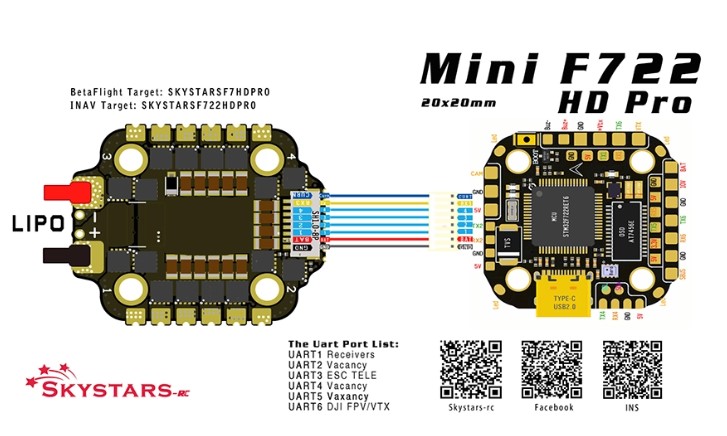

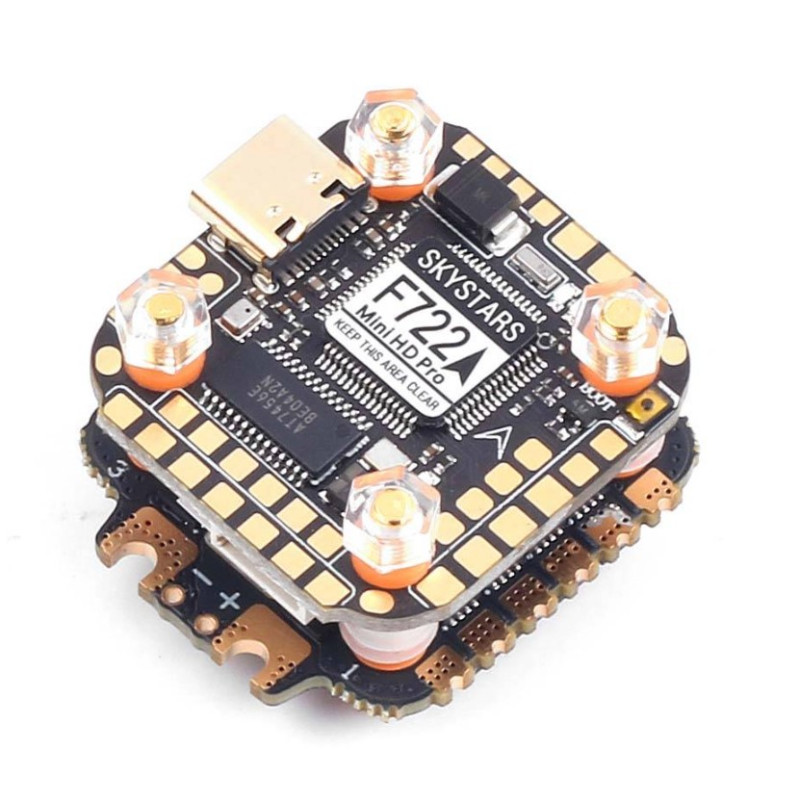

This Skystars stack consists of the F722 mini HD PRO flight controller with a BMI270 gyro, a 16MB blackbox and a 5V/2A & 10V/2A BEC, as well as the KM35 PRO 4in1 ESC supporting BLHeli_32.

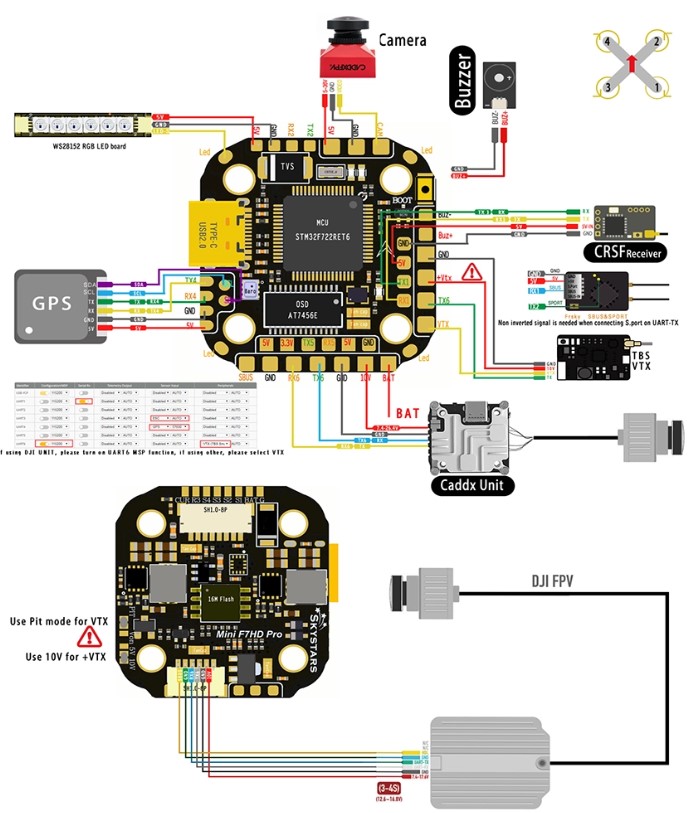

This DJI compatible stack is designed to install LEDs in each corner (WS2812).

FC

  • MCU: STM32F722RGT6 216MHz
  • IMU: BMI270 (SPI)
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6)
  • 5V 2A & 10V 2A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 16MB
  • Barometer: YES
  • Firmware: SKYSTARS F7HD
  • Dimensions: 35x28x7mm
  • Mounting Holes: Standard 20mm/M3 square to center of holes
  • Weight: 4.2g

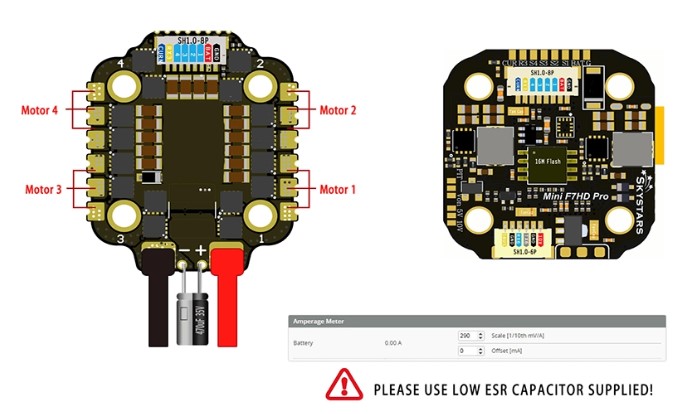

ESC

  • Continuous current: 35A
  • Burst current: 40A≥ 10S
  • Input voltage: 3-6S LiPo
  • Support: Dshot 600/1200
  • Firmware: BLHeli_32
  • BEC: No
  • Mounting holes:20x20
  • Product size: 31x36x3.9mm
  • Weight: 7.8g

Included

  • 1x F722 Mini HD Pro
  • 1x KM35 Pro BLHeli_32
