Manufacturer : Aikon / Référence : F7-3030-OCTO

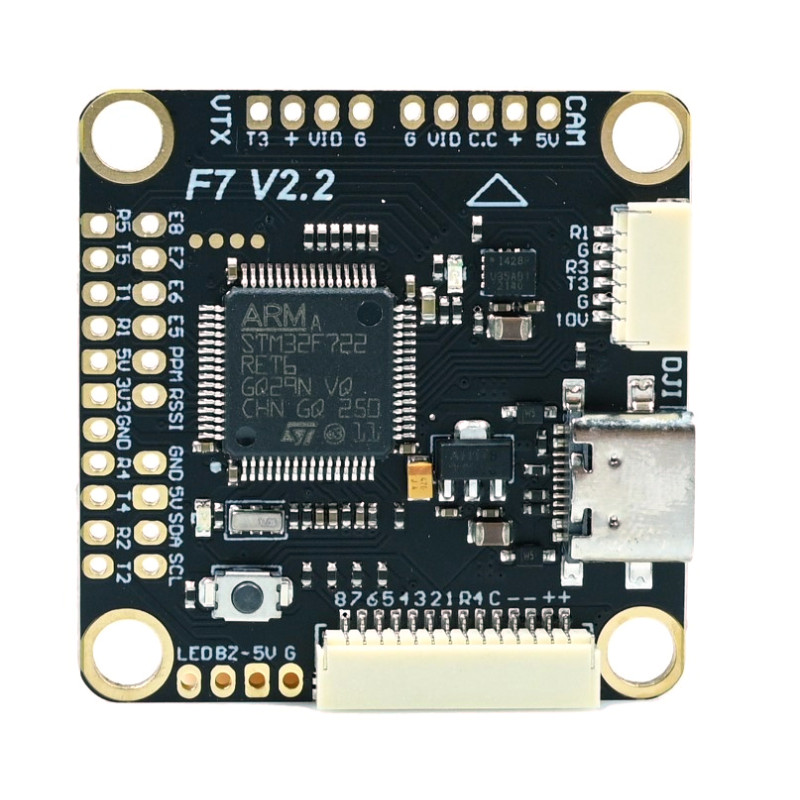

F7 3030 V2.2 Octo Flight Controller By Aikon

En stock
€69.90
Same day shipping

7 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The Aikon F7 3030 OCTO flight controller has been specially designed to work with the brand's 8in1 ESCs.

This FC is equipped with 5 Uarts, a 216MHz F7 processor, an LED and buzzer output, a blackbox as well as an integrated OSD.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Bullet points

  • 216mhz F7 processor
  • 5 Software invertible hardware UARTS
  • Onboard OSD and blackbox
  • Software controlled VTX power switch (assigned to USER1 mode by default)
  • LED and buzzer outputs (LED input doubles as PPM)
  • Quick connection cable for 8-in-1 ESCs
  • Quick connection cable for DJI HD system
  • On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
  • 10v 1.5A voltage regulator for DJI HD system
  • USB Type C connector for easy programming.

Specifications

  • Voltage : 2-6S
  • Mount holes : 30.5*30.5mm
  • Firmware : Betaflight AIKONF7 target
  • MCU : STM32F722
  • IMU : ICM42688P
  • Blackbox : SPI 16MB
  • Motor outputs : Up to 8
  • Weight : 12g

Included

  • 1x F7 3030 V2.2 Octo flight controller
