Manufacturer : Speedy Bee / Référence : SB-F4MINI-STACK

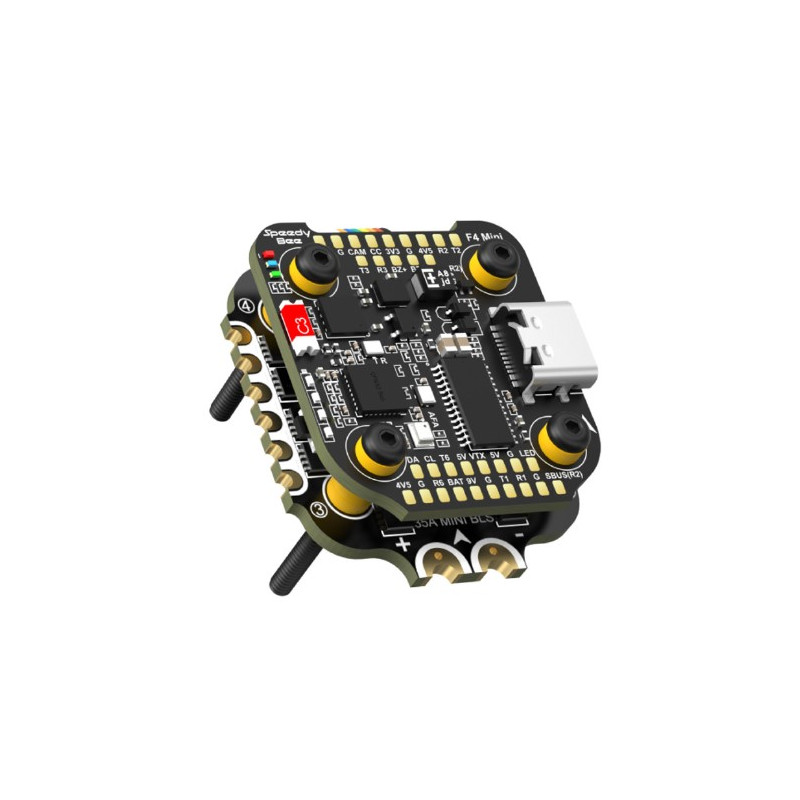

F405 Mini BLS 35A 20x20 Stack By SpeedyBee
En stock
€69.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
New mini stack from SpeedyBee, the F405 mini BLHeli_S 35A.
This stack includes a F405 mini 20x20 flight controller equipped with an 8Mb blackbox, an ICM42688P gyroscope, a barometer, an OSD and supports Bluetooth.
4in1 35A BLHeli_S mini V2 ESC has DSHOT 300/600 ESC protocol and supports 3-6S voltage.
FC
- MCU : STM32F405
- IMU(Gyro) : ICM42688P
- USB Port Type : Type-C
- Barometer : Built-in
- OSD Chip : AT7456E chip
- BLE Bluetooth : Supported
- WIFI : Not supported
- DJI Air Unit Connection Way : Direct soldering
- Compatible with all DJI Air Units: DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1
- Blackbox : 8MB Onboard Flash
- Power Input : 3-6S
- UART : 6 sets
- I2C : Supported
- Buzzer : BZ+ and BZ- pad used for 5V Buzzer
- RSSI Input : Not Supported
- Smart Port / F.Port : Not Supported
- Supported Flight Controller Firmware : BetaFlight(Default), INAV
- Firmware Target Name : SPEEDYBEEF405MINI
- Mounting : 20x20mm
- Dimension : 30(L) x 32(W) x 7.8(H)mm
- Weight : 9.6g
ESC
- Firmware : BLHeli_S J-H-40
- Continuous Current : 35A * 4
- Burst Current : 45A(5seconds)
- ESC Protocol : DSHOT300/600
- Power Input : 3-6S LiPo
- Power Output : VBAT(Battery voltage, used to power the flight controller)
- Current Sensor : Support (Scale=250 Offset=-500)
- Mounting : 20 x 20mm ∅3.5mm hole size
- Dimension : 35 * 35 * 5.5mm
- Weight : 7.2g
Included
- 1x FC F405 mini
- 1x BLHeli_S 35A mini V2 4in1 ESC
- 1x Manual
- 1x 35V 470uF Capacitor
- 1x 8pin JST Cable
- 1x DJI 6pin Cable
- 1x XT30 power cable
- 1x M2 Accessory Set
- 1x M3 Accessory Set
