Manufacturer : Aikon / Référence : F405-60A-AIKON

F405 60A 30x30 BLHeli_S Stack By Aikon

Hors stock
€49.90
Out-of-Stock Notify me when the product is available again

5 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

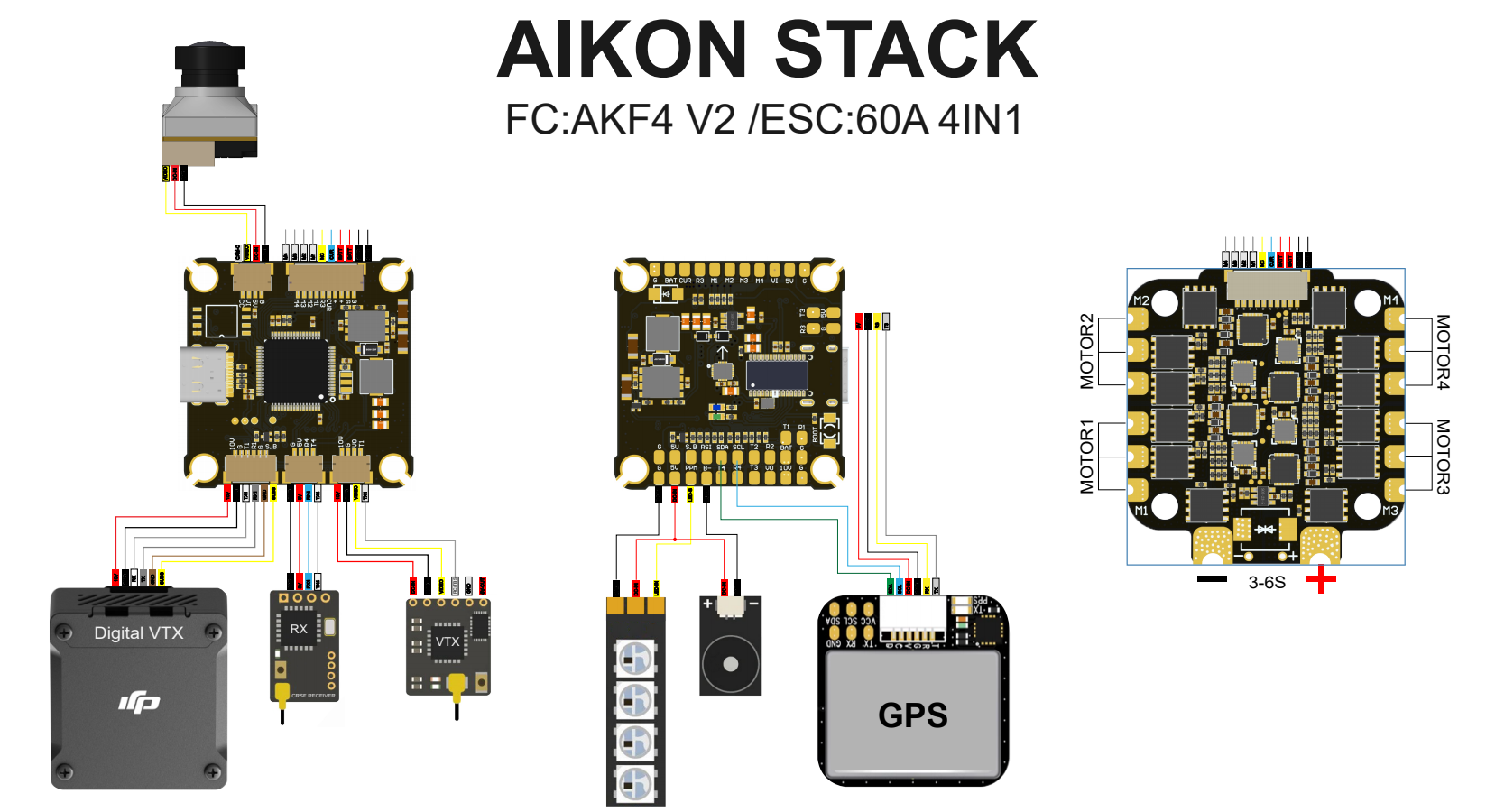

The Aikon F4 60A stack consists of an F405 flight controller and a 60A ESC.

This 30x30mm stack with its competitive price supports 3-8S voltages and features a barometer, an ICM42688P gyro, an OSD, and a 5V/3A 12V/2.5A BEC.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

FC

  • MCU: STM32F405
  • IMU(Gyro): ICM42688p
  • Black box :16M Black Box
  • OSD :BetaFlight OSD ( AT7456E chip)
  • Barometer: BMP280
  • USB Port : Type-C
  • DJI Air Unit connector：YES
  • Power Input： 3S - 8S Lipo
  • BEC Output：5V/3A  12V/2.5A
  • UART：5 sets
  • I2C：YES
  • LED Pad：YES (Used for WS2812 LED control)
  • Buzzer Pad：YES
  • Mounting : 30.5 x 30.5mm ( 4mm hole diameter)
  • Dimension: 36(L) x 36(W) x 7(H)mm
  • Weight: 7g

ESC

  • MCU: EFM8BB21F16G
  • Firmware : BLHeli_S
  • MOSFET: High performance MOSFET
  • Power Input: 3-8S LiPo
  • Continuous Current: 60A * 4
  • Burst Current: 75A(10seconds)
  • ESC Telemetry :NO
  • Current Sensor Scale：200
  • ESC Protocol :DSHOT300/600
  • Firmware: C_H_40 24k
  • Mounting :30.5 x 30.5mm( 4mm hole diameter)
  • Dimension :44.5(L)  41.5(W)  6.3mm(H)
  • Weight 13.5g

Included

  • 1x F405 FC
  • 1x 60A ESC
  • 1x XT60H cable
  • 1x 35V 1000uF capacitor
  • 1x Set of dampers
  • 1x 10pin cable
  • 4x Screw
