Technical characteristics
Beginning a new ERA
After a year of development, Ken Janköster, aka IT'S FPV and one of the most popular german freestyle pilots of the moment, unveils his custom 5" frame, the ERA which perfectly matches his BANDO style with fast lines and committed gaps!
Optimized to accommodate the DJI O3 air unit, the ERA nevertheless remains a versatile frame since other digital or analog VTX systems in 20*20mm and 25.5*25.5mm can be installed.
The compressed X design offers optimal stability and responsiveness, plus you can install or remove your action camera by removing only one screw thanks to the quick exchange function.

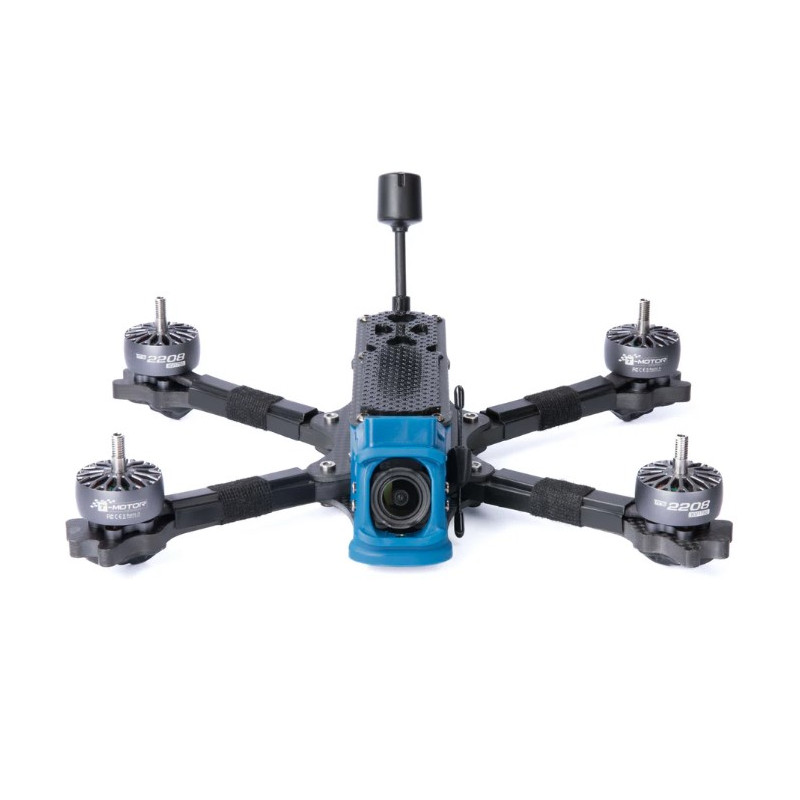

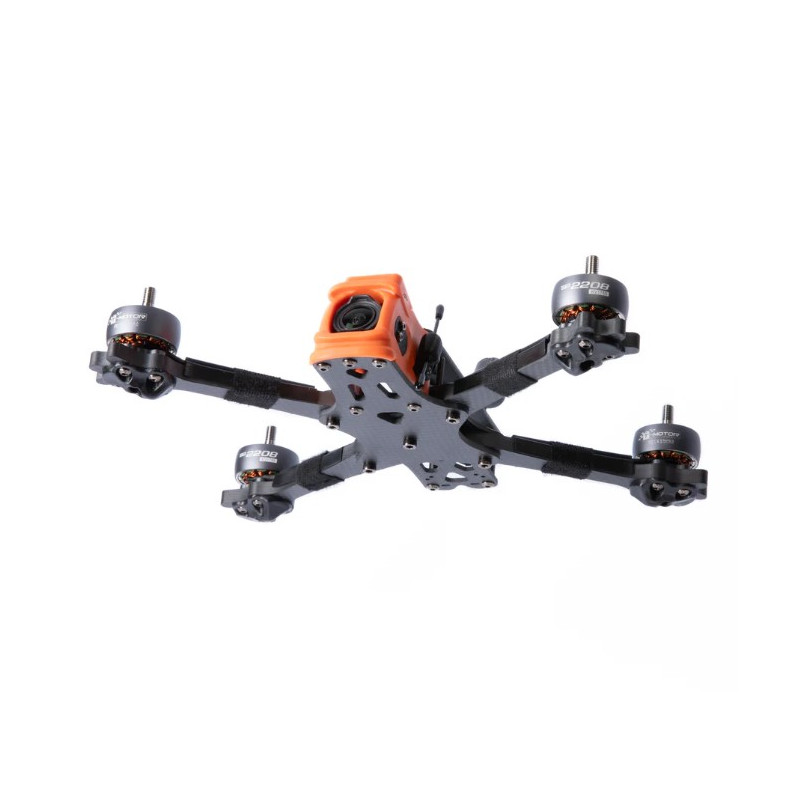

A key and pre-dominant part of the ERA, the FPV camera cage is the strongest ever designed. Thanks to a special blend of nylon and polymer, it absorbs impact energy to provide total protection for your FPV camera. In addition, this cage is available in three color variations, namely gray, blue or orange.
This is batch 3 bringing an interlock V2 which reinforces the structure by linking the four arms together.
Note : motors and VTX system are not included
Bullet points
- Stronger carbon fiber than typical FPV frames
- Super durable nylon camera cage
- Nylon-kevlar battery straps
- Super sticky lipo pad
- Injection molded wire protector
- 20 degree standard camera angle
- Three point bell protection
- One screw arm swap
- One screw action camera swap
Recommended parts
(not inclused)
- Motors : ITS 2208/2305.5 1750KV
- Battery : 6S 1400mAh V5.0 Tattu
- Stack : F7 HD + F55A Pro II stack
- Propellers : F4S Gemfan
- VTX : DJI O3 air unit
- TPU : Thingiverse
Specifications
- 7075 Aluminium standoffs
- Compressed X frame geometry
- 12.9 hardened steel hardware
- Fits up to 5.2" propellers
- Wheelbase 225mm
- Stack mounting 30.5x30.5mm, 20x20mm
- Motor mounting 16x16mm
- Camera mounting up to 20x20mm
- VTX mounting 20x20mm, 25.5x25.5mm
Included
- 1x ERA frame kit
- 1x Hardware set
- 1x TPU parts
- 2x Strap
- 1x Lipo pad
Note : Motors and VTX system are not included
