Manufacturer : Speedy Bee / Référence : SB-MARIO5-FRAME-DC-O4-ADV

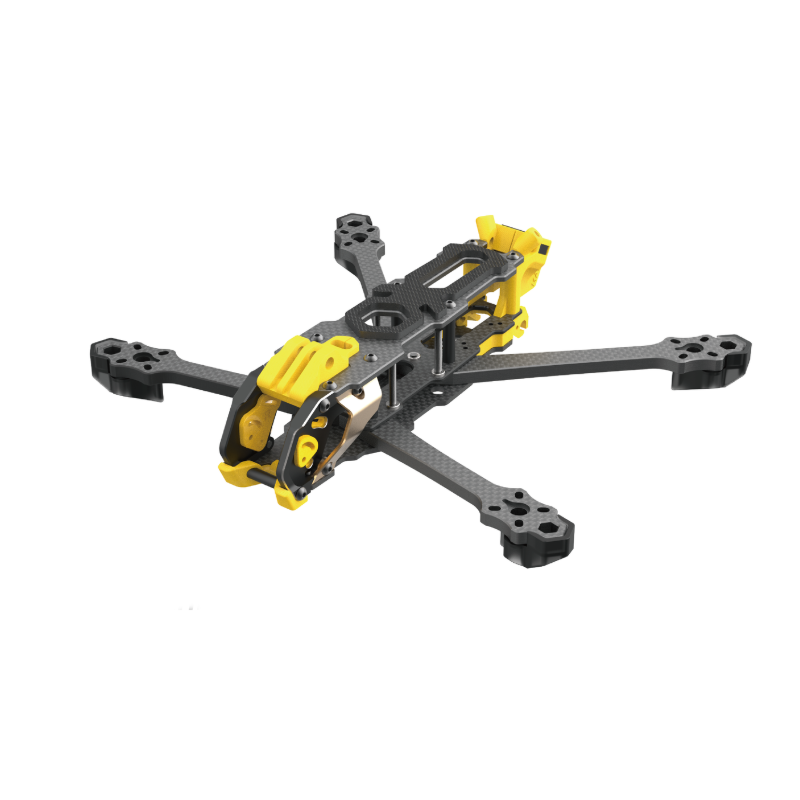

Mario 5 DC O4 Frame Kit Advanced Version By SpeedyBee
Hors stock
€49.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Fly free with the Mario, 5" frame by Lema fpv & SpeedyBee.
Designed for exceptional performance and versatility, this DC O4 frame is compatible with the DJI O3 and DJI O4 Pro air unit and promises to you a field of view without propellers.
Made of T300 3K carbon, the Mario frame can accommodate a 30.5x30.5mm stack, a 20x20 or 25.5x25.5mm VTX and 5.1" max propellers.
Specifications
- Wheelbase : 227mm
- Weight (3D Printed Parts Excluded) : 129 ±5g
- Weight (3D Printed Parts and Injection) : 170±5g
- Top Plate Thickness : 2.5mm(T300 3K)
- Middle Plate Thickness : 2.0mm(T300 3K)
- Bottom Plate Thickness : 2.5mm(T300 3K)
- Arm Thickness : 6mm(T300 3K)
- Camera Mounting Screw : 7mm
- 3D Printed Parts : Yellow TPU
- Battery Anti-Slip Pad : Silicone 3mm
- Motor Spring Hole Position : Φ8mm
- Compatible Propeller Size : Max 5.1 Inch
- Motor Mounting Hole Distance : 16-19mm
- FC Mounting Hole : 30.5x30.5(M3)
- VTX Mounting Hole : 20x20(M2) / 25.5x25.5(M2)
- Head Material : Aviation Aluminum Alloy
- Aluminum Column Material : 7075 D5*23mm/D46*22mm
- Internal Mounting Height : 23-31mm
- Receiver Installation Space : 25*13*6mm
- Suitable Capacitor Size : Φ10mm*20mm
- GPS Installation Size : 18*18*7
Bullet points
- DeadCat geometry
- Aluminum alloy head
- DJI O3 O4 Pro and analog VTX compatible
- Selectable dual feed to adjust center of gravity
Included
- 1x Mario 5 frame DC
- 1x Set of TPU parts
- 1x Hardware set
- 1x SMA / UFL antenna
