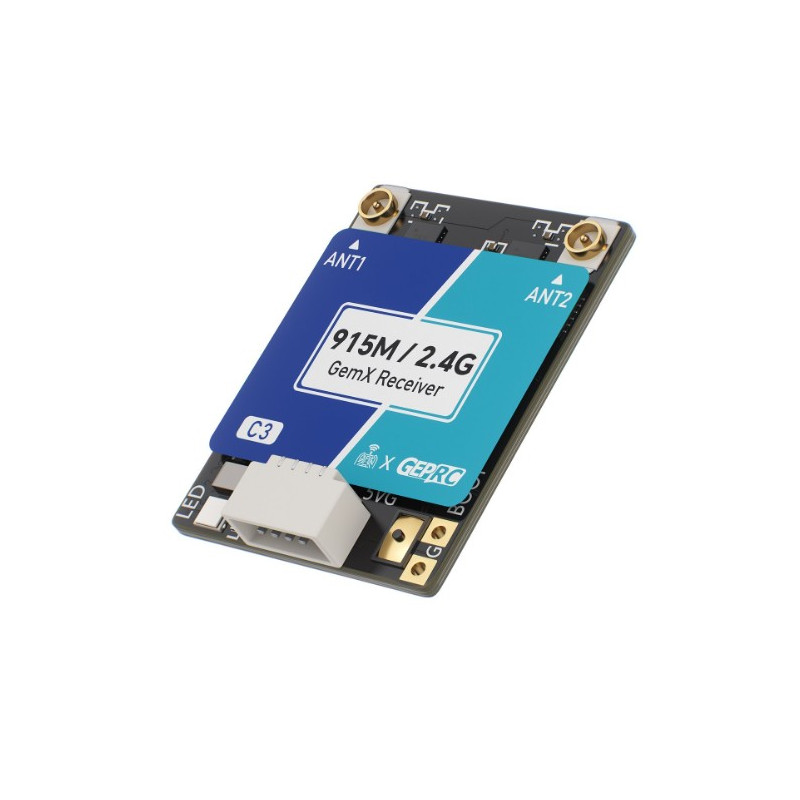

ELRS 915M/2.4G C3 Gemini Xrossband Receiver By GEPRC
In stock
€22.42
View More Info
Detailed Description
The Gemini Xrossband ELRS 915M/2.4G C3 receiver from GEPRC is a new dual-band system developed from the ExpressLRS open source project.
Equipped with two LR1121 and ESP32-C3 chips that support the 150-960MHz +2.4G bands, the receiver is compatible with existing ELRS 915M and 2.4G TX modules.
In dual-frequency mode, the Xrossband Gemini offers better stability and less interference. The TCXO oscillator ensures reliable performance despite temperature variations, with a telemetry power of up to 100mW.
Finally, a built-in WiFi antenna allows for easier firmware updates and the SH1.0 connector simplifies installation.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Specifications
Size
Nano
Protocol
ELRS 2.4G
Protocol
ELRS 868
Specifications
- Dimension: 18×23.6×5.7mm
- Weight: 1.6g (only receiver)
- Chips: ESP32-C3, LR1121x2
- Crystal Oscillator: TCXO
- Frequency Bands: 915MHz Gemini,2.4GHz Gemini,915M+2.4G Dual-Band
- Refresh Rate: 25Hz-1000Hz
- Serial Output Protocol: CRSF, SBUS, SUMD, DJI RS2 Pro, MAVLink
- Operating Voltage: 5V
- Antenna Connector: ipex1
- TLM Power: 100mW
- Firmware: GEPRC 900/2400 Gemini Xrossband RX
Bullet points
- Advanced ExpressLRS 915M/2.4G dual-frequency system
- Based on Semtech’s third-generation LR1121 RF chip
- Compact at 18×23.6×5.7mm and weighing just 1.6g
- Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF
- Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
- Telemetry power up to 100mW
- Refresh rate up to 1000Hz
- Supports WiFi firmware updates
- Includes an SH1.0 connector for easy installation
Included
- 1x ELRS 915M/2.4G C3 Gemini Xrossband Receiver
- 2x 915M/2.4G Dual-band T-Antennas (ipex1 180mm)
- 1x Heat shrink tube
- 1x 4-pin silicone connect cable
- 1x User manual
