Manufacturer : Iflight / Référence : BF15391

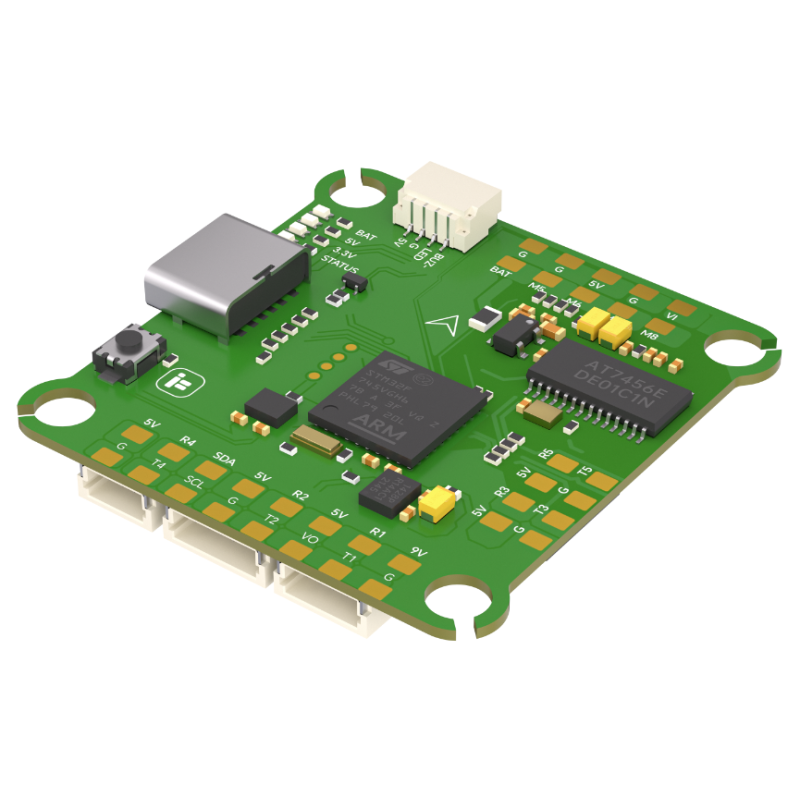

Blitz F745 30x30 Flight Controller By Iflight

En stock
€68.90
Same day shipping

7 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Technical characteristics

Supporting Betaflight, INAV and Ardupilot firmware, the Blitz F745 flight controller is equipped with quality components that significantly reduce noise!

The Iflight FC consists of, among other things, an ICM42688 gyro, a DPS310 barometer and a 32MB blackbox.

Specifications

  • MCU: STM32F745
  • Gyro: ICM42688
  • Barometer: DPS310
  • OSD Chip: AT7456E
  • Flash: 32MB (Blackbox flash)
  • UARTS: 6
  • Smartaudio / IRC Tramp VTX protocol supported
  • LED controller: Yes
  • Beeper pad: Yes
  • Firmware target: IFLIGHT_BLITZ_F7_AIO
  • Mount pattern: 30.5*30.5mm
  • Dimensions: 36.5*35 mm
  • Weight: 7.8g
  • BEC: 5V 2.5A / 9V 2A
  • UART 1 for VTX HD / Analog
  • UART 2 for a Receiver
  • UART 3/4/5 for GPS or other sensors that require a serial port
  • UART 6 for ESC Telemet

Included

  • 1x BLITZ F745 Flight Controller
  • 1x Hardware set
