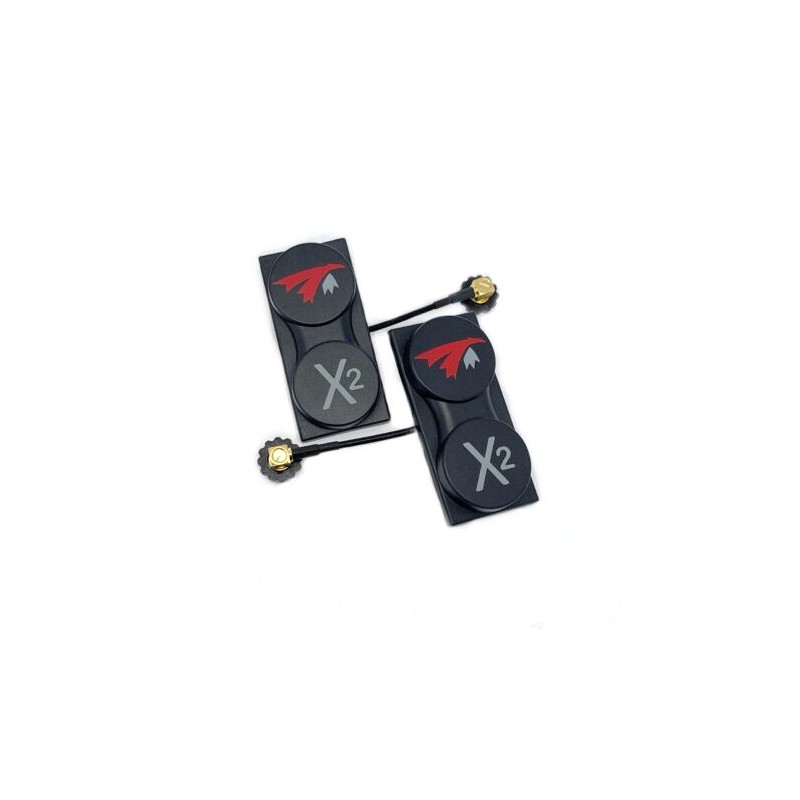

X2-Air 5.8 MK.II For HDZero VRX4 - RHCP (2pcs) By TrueRC
Related accessories
Technical characteristics
Even more gain and comfort thanks to this novelty from TrueRC which combines two X2-Air MK II antennas for the HDZero VRX4 module.
Simply slide the antennas onto the module rails and screw on the SMA connectors.
For even more performance, add a pair of OCP antennas.
Bullet Points
- Circularly Polarized
- Sector type beam shape (widest on horizontal)
- Mount direct on DJI faceplate with included adhesive backing
- Compact low-profile design on your goggles, easy to store and transport
- High 13 dBic for unsurpassed long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 150 degree beam for each antenna combining to 180deg beam width
- Custom knurled SMA connectors
Specifications
- Bandwidth: 5.1GHz-7.0GHz
- Gain: 13 dBic
- Polarization: RHCP
- Beam-width Horizontal*: 150deg
- Beam-width Vertical*: 62deg
- Hor. beam @-3dB**: 75deg.
- Vert. beam @-3dB**: 34deg.
- Connector: Custom knurled SMA
- Dimension: 72mm x 34mm x 15mm
- Weight: 20g each
- Include mounts for installation onto Hdzero module.
*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.
Included
- 2x TrueRC X2-AIR 5.8 MK.II antenna for HDZero VRX4 - SMA - RHCP (one for each side)
- 2x Slide-on mount
