Volador II VX5 O3 FPV Freestyle T700 Frame Kit By FlyFishRC
Related accessories
HQProp ETHIX S5 Cinematic Props
T-Motor Combo F7 HD FC + F55A PRO II
TBS Crossfire Nano RX (SE)
Props Guards For CineON Z25 By AxisFlying
Technical characteristics
This is the second version of the FlyFishRC Voladors, with many improvements over V1.
O3 compatible, the camera will be well protected there thanks to the shock-absorbing silicone insert, which will eliminate any possible jello.
The redesigned lipo pad is even more adhesive and more resistant.
The Volador series are specially designed for freestyle and cinematic FPV.
Volador VX5 adopts the Squashed X design for maximum control and precision. 20x20mm and 30.5x30.5mm mounting holes, 20x20mm, 25x25mm VTX mounting make this chassis super convenient!
We have integrated the XT60 connector on the back of the Volador chassis to allow you to easily connect the battery and, above all, to eliminate any risk of damage to the cable by the propellers or any type of impact.
The Volador 5" is made of high-strength T700 carbon. The surface of the carbon plates is delicate and smooth, and each part of the chassis is carefully chamfered.
V2 Improvements
- The frame is now significantly lighter.
- The new CNC side plate is lighter and perfectly fits the DJI O3 AU camera.
- The new battery anti-slip pad is more “sticky” and has better adhesion.
- Added keystone to even further reduce arm vibration.
- Added bottom screw gasket.
- Added motor wire protection tubes.
- The four middle screws on the top plate are now countersunk and sit flush, to eliminate possible battery damage during crashes.
- The new TPU arm protectors are now lighter and allow for easier disassembly.
- All models now come with two types of TPU antenna mount (with or without GPS mount).
- The thickness of the bottom and middle plates has been adjusted to 2.5mm.
- The connection structure between the arm and the clamp plate is slightly adjusted to distribute stress better.
- XT60 plug cutout on the top plate is now symmetrical, allowing installation of the XT60 in both orientations.
Specifications
- Arm Thickness: 6mm
- Top plate thickness: 2.5mm
- Middle plate thickness: 2.5mm
- Bottom plate thickness: 2.5mm
- Keystone thickness : 5mm
- SIde plate thickness : 5mm
- Propeller size: 5~5.1 inch
- Material: T700 carbon plate
- FPV cam spacing: 19mm/20mm
- Weight: 177.4g(with TPU parts)

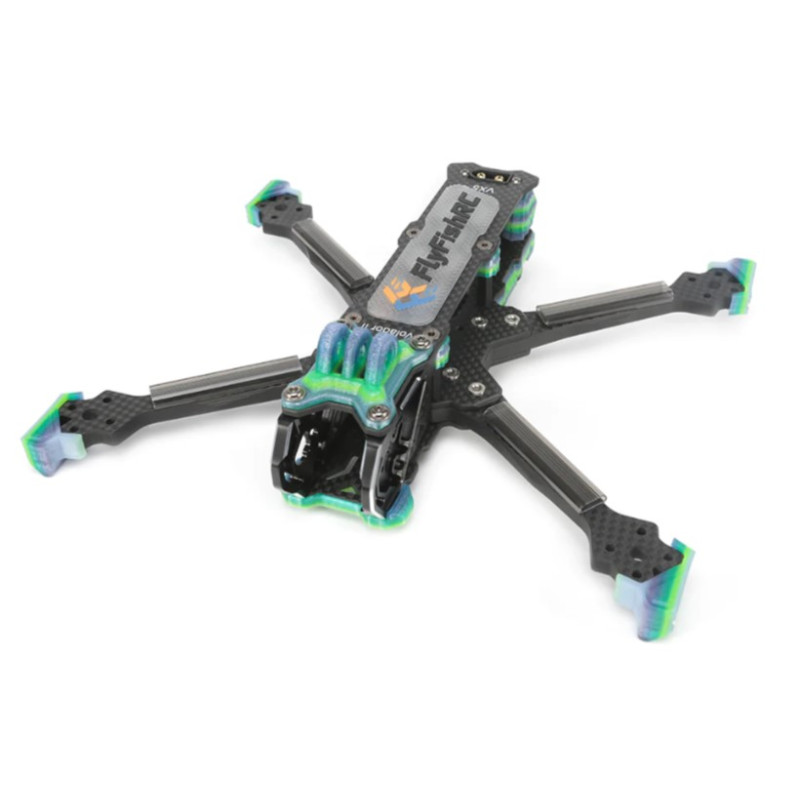

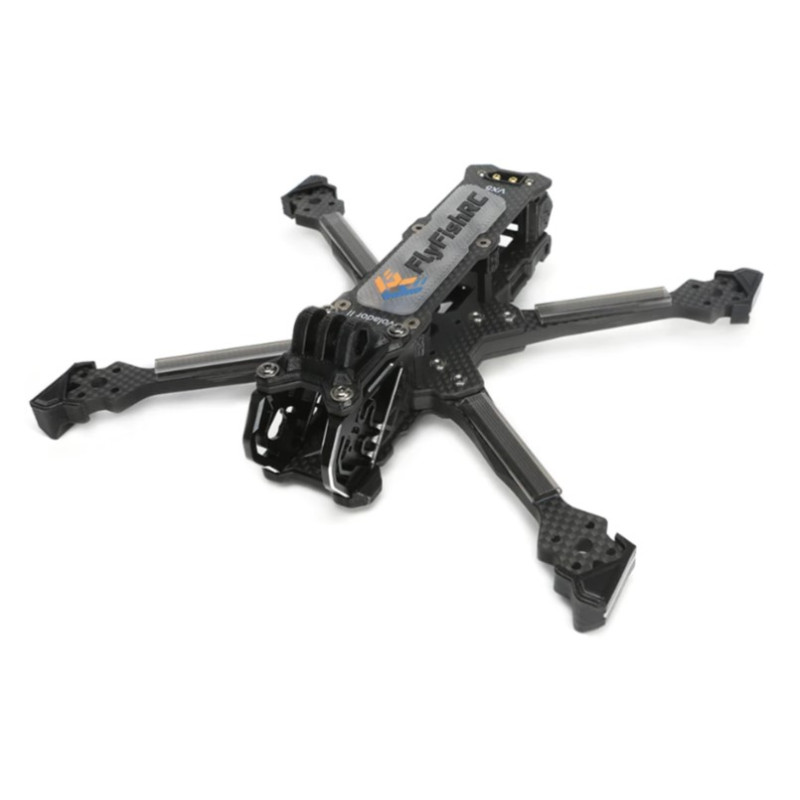

- Colour: Black/Tropical Mix (Optional)
- Total Dimensions :177mm*165mm
- Wheelbase:225mm
- Stack mounting holes: 20mm*20mm/30.5mm*30.5mm(M3)
- VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
Included
- 1x Volador II VX5 FPV Freestyle T700 Frame Kit
Volador_II_VX5VX6_Manual (1.26MB)
Volador_II_VX5VX6_Manual_en
