Detailed Description

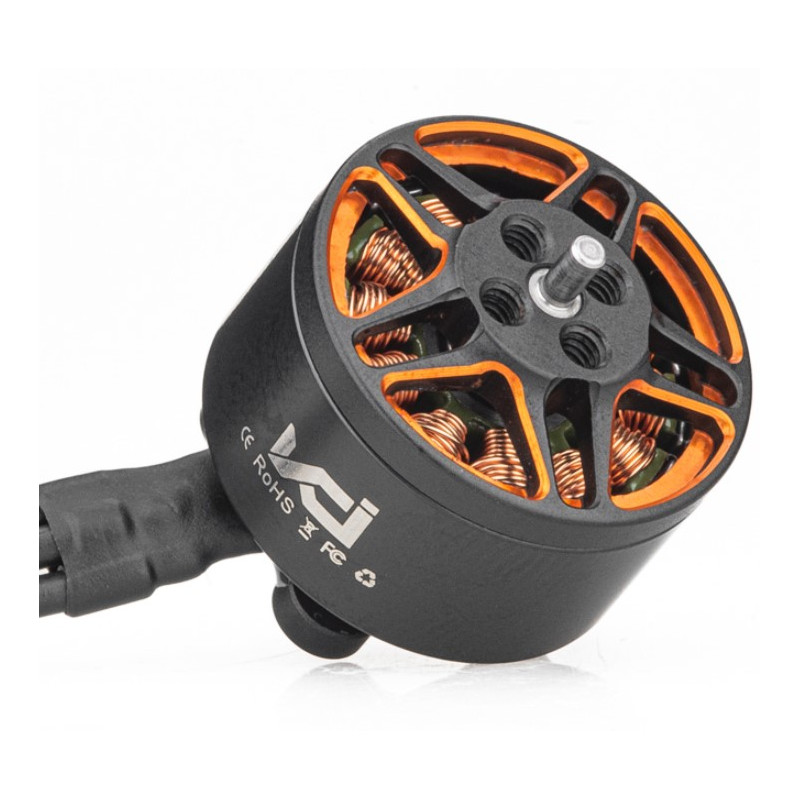

Discover Vulcan Innovation and its 1507.2 motors intended for micro whoops.

These 3900KV motors offer precise control and a very fast response time.

Their reduced body provides unparalleled agility, even in tight spaces.

The VCI Spark 1507.2 have a 1.5mm pressure shaft and will be perfect combined with the Gemfan D75-3 propellers.

Specifications

KV 3900

Shaft Type T-Mount

Shaft Size 1.5mm

Motors Size 15XX

Specifications

KV: 3900
Configuration: 12S14P
Internal Resistance : 80mΩ
Shaft length : 3mm
Rated voltage : 4S (16V)
Peak current : 21.92A
Idle Current (10V) : 1.1A
Magnets : N52SH arc
Stator size : ⌀15*L7.2mm

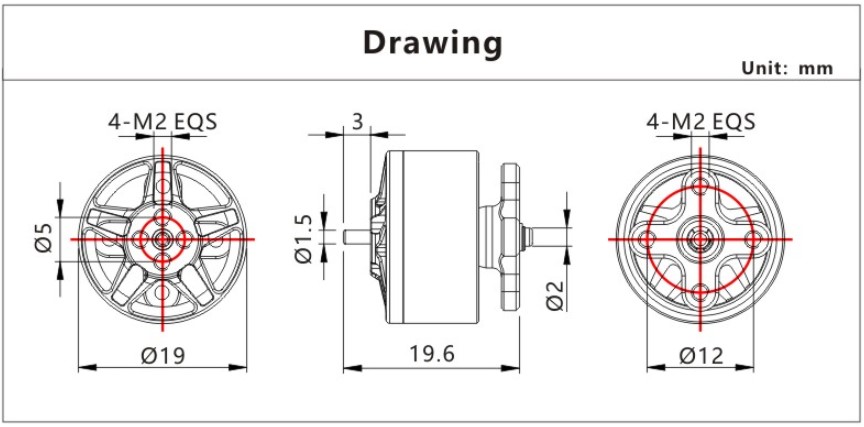

Dimensions : ⌀19*L19.6mm
Shaft diameter : ⌀1.5mm
Silicone wire : 24AWG 100mm
Max power : 350.72W
Weight (with cable) : ~14.8g

Typical Setup

Specifications

KV: 3900
Configuration: 12S14P
Internal Resistance : 80mΩ
Shaft length : 3mm
Rated voltage : 4S (16V)
Peak current : 21.92A
Idle Current (10V) : 1.1A
Magnets : N52SH arc
Stator size : ⌀15*L7.2mm
Dimensions : ⌀19*L19.6mm
Shaft diameter : ⌀1.5mm
Silicone wire : 24AWG 100mm
Max power : 350.72W
Weight (with cable) : ~14.8g

Included

1x VCI 1507.2 Motor
1x Set of screws
