Manufacturer : Ninja Tech / Référence : SWIFTFLYING-USBC-XT60-ADAPTER

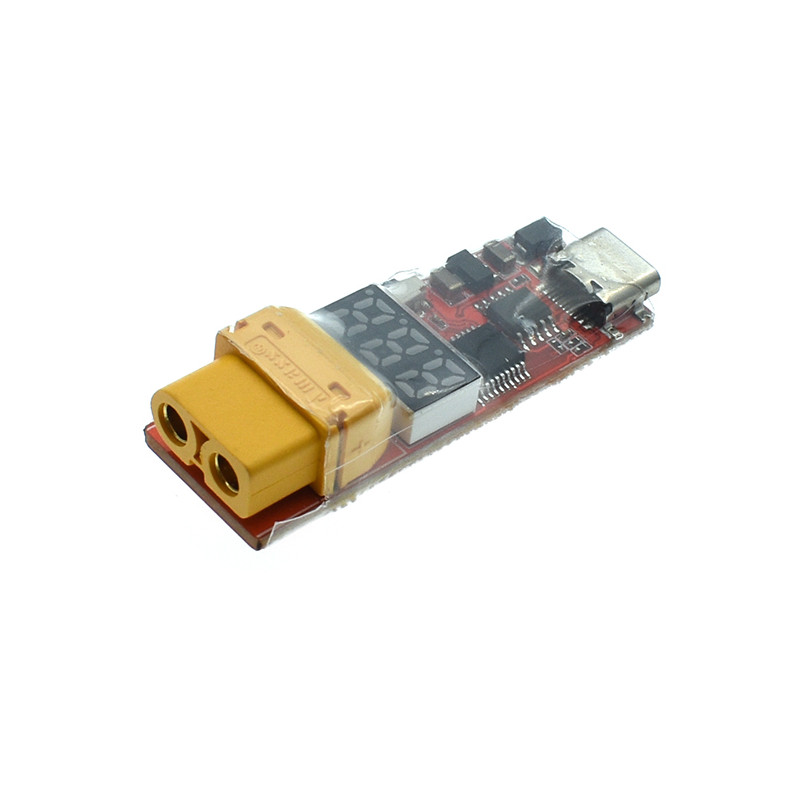

USB-C to XT60 Adapter By NinjaTech
En stock
€9.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This handy adapter switches your USB Type-C power to XT60, all while displaying the output voltage. This will allow you to test your drones without using your charged batteries.
Note: to change the output voltage (on the XT60 female side), all you need to do is:
- To press the button while plugging in USB simultaneously (without plugging anything in XT60)
- Release the button and press several times to scroll through the available voltages
- Once the desired voltage has been chosen, the module will supply this same voltage. (The module is set to 12V as standard).
Bullet points
- Always make sure to match the voltage for your device!
- Powered by any device with PD/QC protocol, such as power banks, QC/PD wall adapters & car chargers,
- LED Display to monitor output voltage
- Use the lock button to set the output voltage (5-9-12-15-20V).
- Display will show the last used voltage. Use the button to check and set the voltage before connecting output.
- Max output,20V 5A. (Max 60W output without special microchip cable)
- This module only changes the power delivery connection. The final output depends on the input and output device.
- If the DJI FPV Goggles V2, please use an XT60 to DC cable (not included)
Specifications
- Input Voltage : USB QC3.0 (5, 9, 15, 20 V)
- Output Voltage : 5, 9, 12, 15, 20 V
- Connectors : USB Type-C, XT60
- Dimensions ：50x17x12mm
- Weight : 8.5g
Voltage tips
- DJI goggles: 15-20V
- Orqa FPV.One.pilot: 9-20V
- TS100/Sequre irons: 12/15/20V
Included
- 1x USB-C to XT60 Adapter
Customer reviews
gets very hot in 15v and 20v usage.
Fonctionne très bien.
Nickel
