Manufacturer : Flycolor / Référence : W4-FW045006-G1G1-TX01

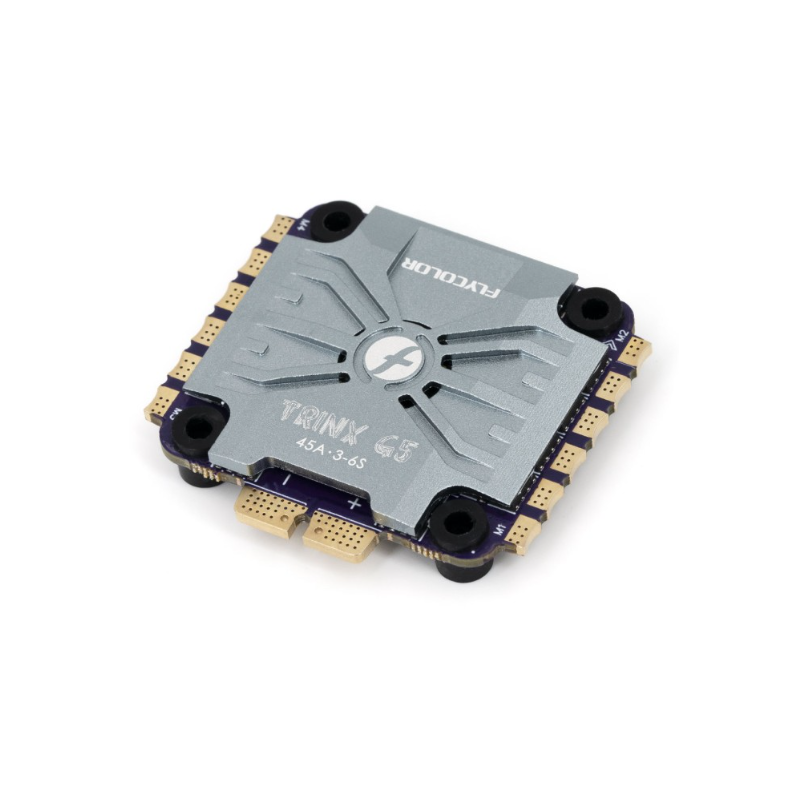

Trinx G5 4in1- 45A ESC by Flycolor
En stock
€74.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Check out the Flycolor Trinx G5 45A 4-in-1 ESC with 45A of continuous current support, you will have plenty of headroom to push your rig to the limit.
With the high-powered MCU and Raptor 5 firmware, this is a path towards the next level for your builds!
Bullet Points
- PWM frequency up to 128K
- Multiple Protocols
- 4in1 ESC built-in current sensor and VBAT output.
- Longer and better performance thanks to its large surface area of aluminum heat sink
- Damping design to reduce the effect of vibration on the flight controller.
- Supports higher power load, more suitable for violent flight of racing drone.
- Large soldering tabs
Specifications
- Con. Current: 45A
- Burst Current(10S): 55A
- BEC: NO
- LiPo cells : 3-6S
- Weight: 19.6g (with heat sink)
- Size: 45x41x8.3mm
- Mounting: 30.5x30.5 (M3)
- Configurator: BLHeliSuite32
- Firmware: Flycolor_Raptor_5
- MCU: STM32G071
Included
- 1x Trinx G5 4in1- 45A ESC
- 4x Silicone vibration absorber
- 5x O-Ring
- 1x Power cable+XT60
- 1x FC/ESC connecting wire
- 1x Low ESR capacitor
- 1x Aluminum heat sink
