The next revolution in circular polarization technology, the Triumph Pro gives professional performance in a compact, durable package.  Don’t let the small size fool you, the Triumph Pro doesn’t compromise on performance.  Designed by IBCrazy and manufactured by TBS, the multi-phase elements use patent pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allow mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.

FEATURES:

• Manufactured and tested to highest standards
• Best in class range and signal quality
• Incredibly small and low weight
• Ultrasonic welded and foam infused cover for ultimate crash-protection
• Double-jacket semi-rigid cable for heavy impact resistance

TECHNICAL SPECIFICATIONS:

• Frequency range: 5500-6000MHz
• Gain: 1.26dbic
• Axial Ratio:   0.74
• Weight: 11.5g
• Height: 78mm, 3in
• Connector: SMA
• Polarization : LHCP

PACKAGE CONTENTS:

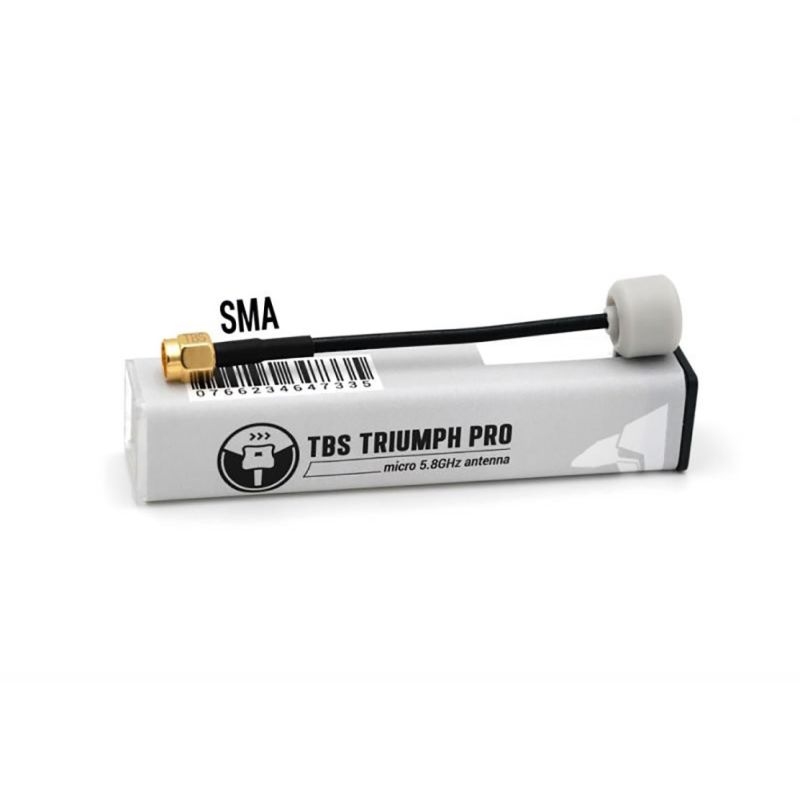

• 1x TBS Triumph Pro SMA - LHCP
