Manufacturer : GEPRC / Référence : GP107501

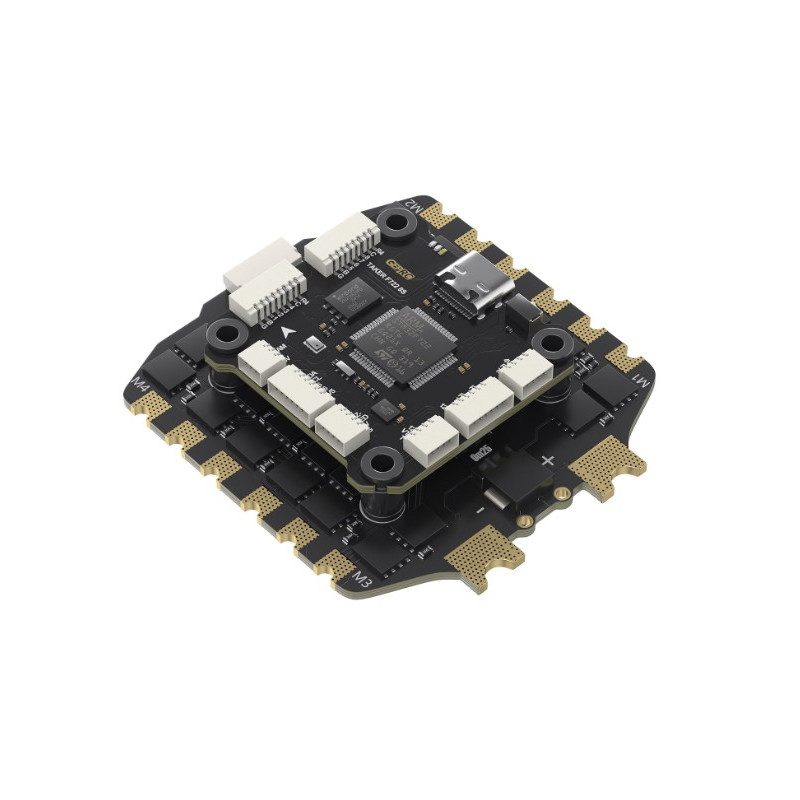

Taker F722 BLS 100A 8S Stack By GEPRC
Hors stock
€159.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The GEPRC TAKER F722 100A stack supports 3-8S LiPo voltage, mounts in a 30.5x30.5mm format, and is compatible with the DJI O4 air unit.
It consists of a TAKER F722 8S flight controller equipped with an ICM42688P gyro, a 16M blackbox, a barometer, a 5V 3A and 12V 3A dual BEC, and 6 UARTs.
The TAKER H100 8S BLHeli_S 4-in-1 ESC supports 100A current and Dshot 150/300/600 protocols.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
TAKER F722 8S FC
- MCU: STM32F722
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugs into DJI Air Unit
- Black Box: 16M onboard
- USB Interface: Type-C
- Barometer: Supported
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A,12V@3A dual BEC
- Firmware Target: TAKERF722SE
- Dimension: 38.5×38.5mm,
- Mounfing Hole Size: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
- Input Voltage: 3-8S LiPo
- UART: 6 UARTs
- Power Filter: Integrated LC filter
- Weight: 8.1g
TAKER H100 8S BLS 4in1 ESC
- Input Voltage: 3-8S Lipo
- Ammeter: Support
- Calibration value: 200
- Continue Current: 100A
- Burst Current: 105A (5 seconds)
- Support Protocol: Dshot 150/300/600
- Size: 56.3*61.1 mm; hole: 30.5×30.5 mm; φ4 mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 28.8g
- Target: B_X_30
Bullet points
- Uses the mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope 3.16M onboard black box storage
- Integrated LC filter
- Upgraded Type-C USB interface
- Directly plugs into the DJI Air Unit
- Paired with the TAKER H100_8S_BLS 100A 4IN1 ESC, providing a smooth flying experience
- Simple and efficient installation method with shock absorbers for stable gyroscope performance
- Dual independent BECs: 12V@3A and 5V@3A
- Supports 8S Lipo batteries
- Support direct insertion of 8 motors
Included
- 1x FC board
- 1x ESC board
- 1x Capacitor
- 1x O3 3-in-1 connection cable
- 2x FC adapter cable
- 1x sh1.0 4pin silicone cable
- 1x Camera connection cable
- 1x VTX connection cable
- 1x XT90 power cable
- 4x M3*30 screws
- 4x M3*25 screws
- 8x Nylon nuts
- 12x Silicone anti-shake pads
