Manufacturer : GEPRC / Référence : GP107500

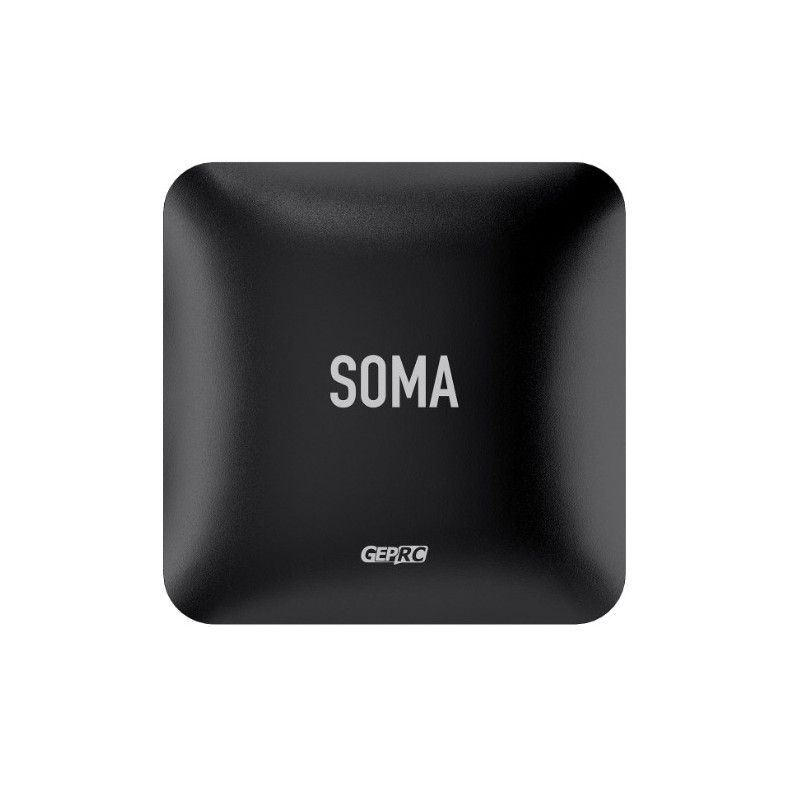

SOMA 5.8G Patch Antenna By GEPRC

En stock
€49.90
Last items in stock

5 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Technical characteristics

The GEPRC SOMA patch antenna is a 5.8G RHCP directional antenna offering high gain of up to 17dBi and a low VSWR of 1.5, ensuring excellent signal reception.

Compatible with various mounts, it features a sturdy 1/4 aluminum alloy base.

The SOMA is ultra-thin and features a high-quality SMA connector for lower impedance and improved transmission efficiency.

Specifications

  • Center Frequency: 5.45GHz
  • Bandwidth: 4.9GHz~6GHz
  • Polarization: RHCP
  • Gain: 17dBi
  • Axial Ratio: ≤3

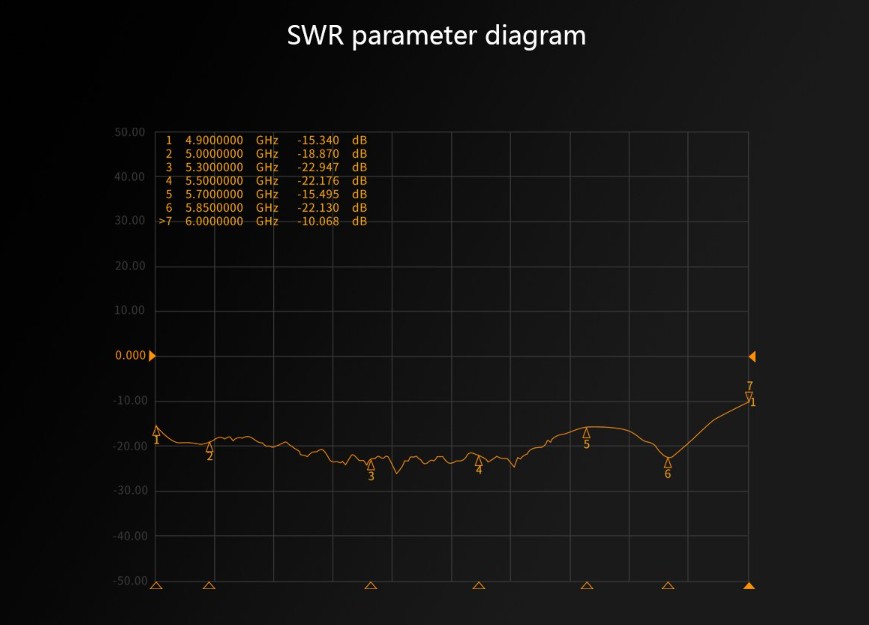

  • SWR：≤1.5
  • Radiation Efficiency: 88.5%
  • Cross polarization suppression: -25dB
  • Overall Dimension: 203.5mm x 203.5mm x 20mm
  • Antenna Weight: 272g
  • Enclosure Material: ABS
  • Connector Type: SMA (external thread, internal hole）

Included

  • 1x Patch antenna
  • 1x SMA extension
