Manufacturer : AXIS Flying / Référence : SMURFS

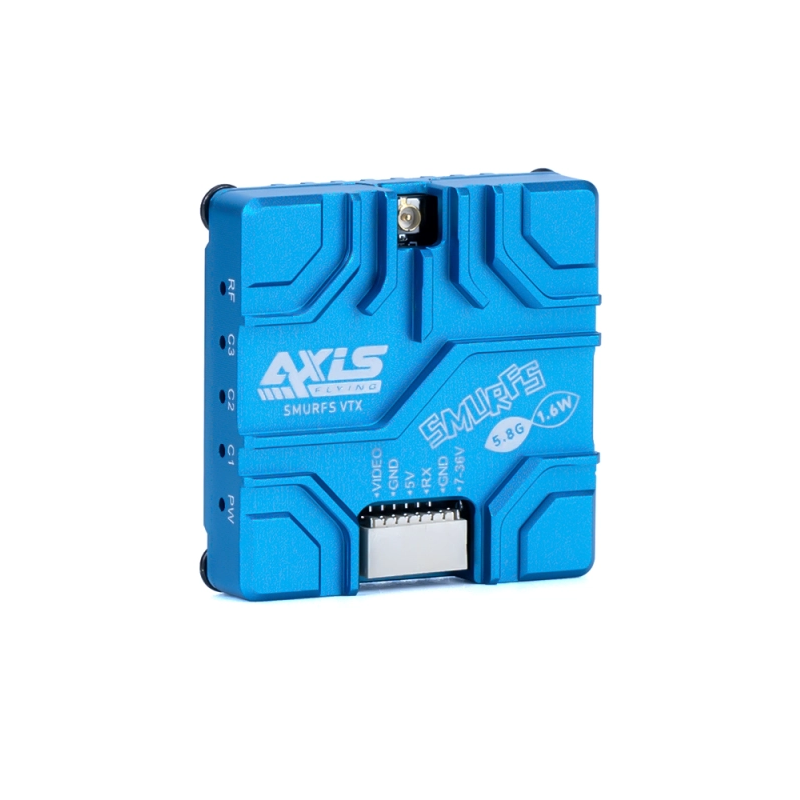

Smurfs 5.8G 1.6W VTX By AxisFlying
Hors stock
€44.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Related products
Technical characteristics
AxisFlying offers a 5.8G 1.6W analog smurf worthy of a FPV pilot smurf!
This video transmitter operates on the 5.8GHz frequency band, it offers a power of 25mW at 1.6W.
The SMURFS VTX is mounted in 20*20mm, has an IPEX1 connector and supports a power supply of 7 to 36V.
* Important note: French regulations impose a maximum power of 25mW in the 5.8 Ghz frequency, as well as dual control piloting to practice immersion flight (FPV). The responsibility of Drone-FPV-Racer cannot be engaged for any use of this material without an adequate license.
Specifications
- Frequency : 5.8G band, 5 frequency groups, 40 transmission frequencies
- Power rate : 25/100/250/800/1600mW
- Antenna interface : IPEX
- Input power : 7V~36V
- Adjustment mode : Button operation, OSD control
- Dimensions : 30*30*9mm
- Weight : ~12.7g
- Mounting holes : 20*20mm (M2)
- Protocol : IRC Tramp
Included
- 1x 1.6W VTX
- 1x Connection cable
